VERSON 41000R-50-164
Type:
PRESSES, HYDRAULIC, (Fluid Forming)
Manufacturer:
VERSON
Model:
41000R-50-164
Condition:
Not Specified
Year:
2005
Stock #:
24737
Status:
Sold
Description:
OPERATOR CONTROL, 50" X 164" TRAY, 10,000 PSI, 41,000 TONS,
Location:
Tennessee, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

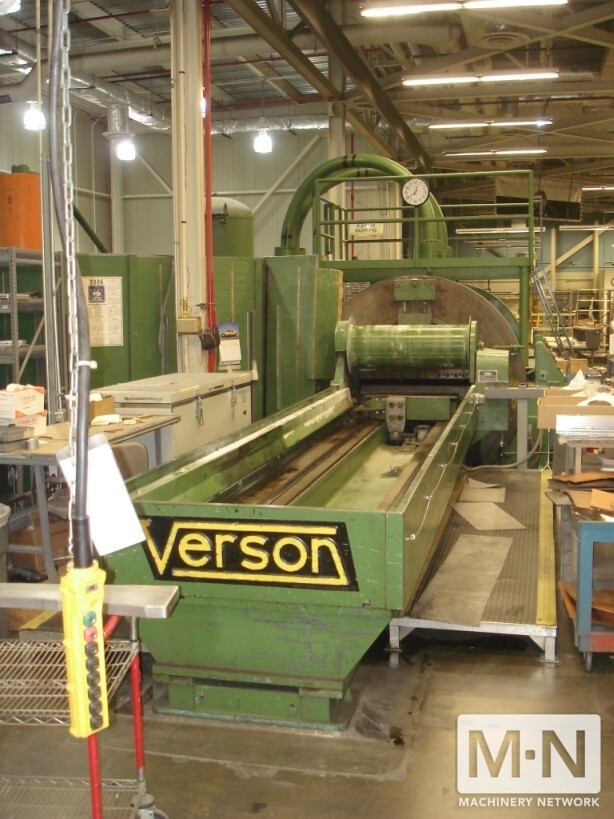

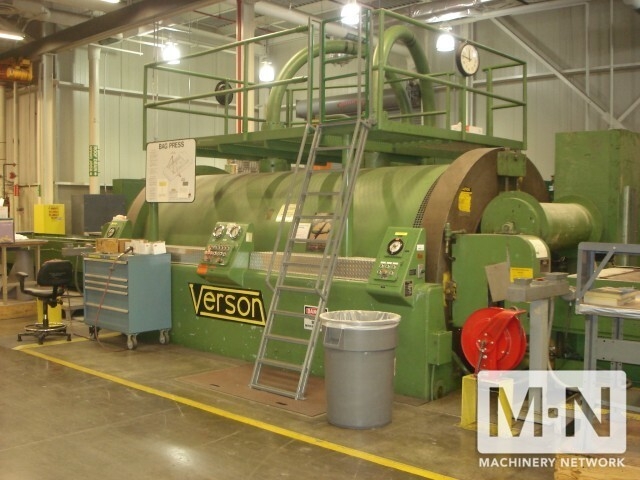

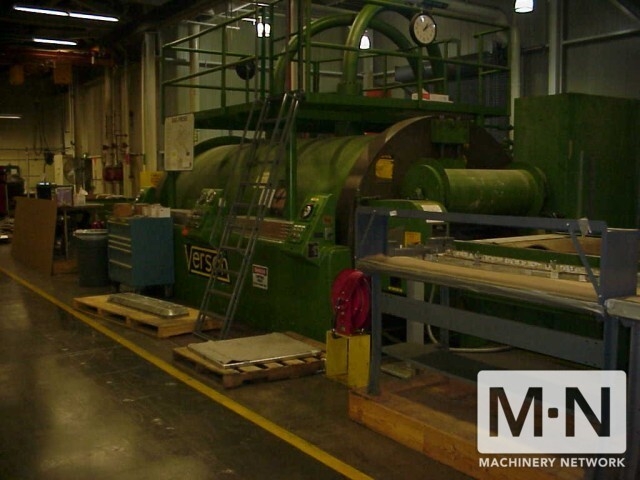

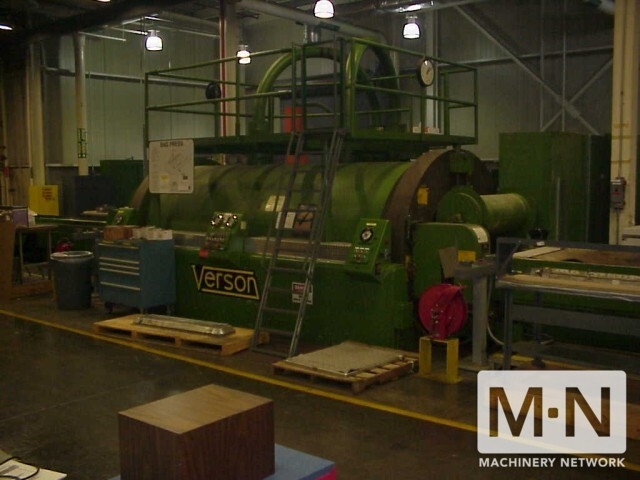

(1) USED VERSON WHEELON DIRECT ACTING HYDRAULIC FORMING PRESS
MODEL: 41000R-50-164, SERIAL NO. 20707,
NEW 1968, R'BLT 2005
SPECIFICATIONS:
CAPACITY:............................. 41,000 TONS
FORMING PRESSURE, VARIABLE TO (MAX):.. 10,000 PSI
PRESS TABLES

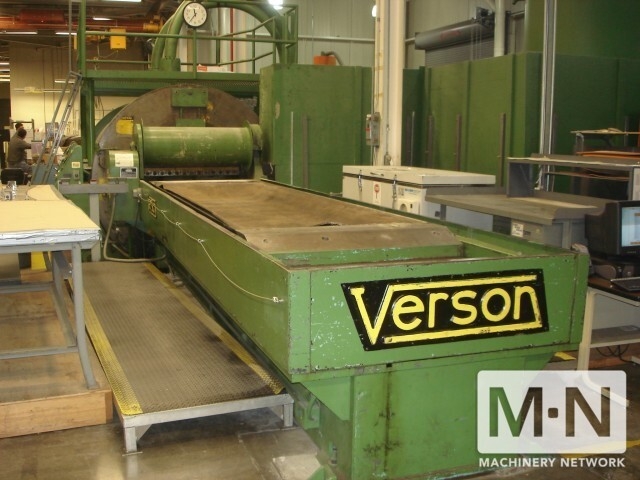

TRAY SIZE @ TOP:..................... 50" X 164"
TRAY AREA @ 6" DEPTH:................ 42-1/2" X 157"
TRAY AREA @ 10" DEPTH:............... 37-1/2" X 152"
(FILLER PLATES AVAILABLE, REDUCES DEPTH OF TRAY TO 6")

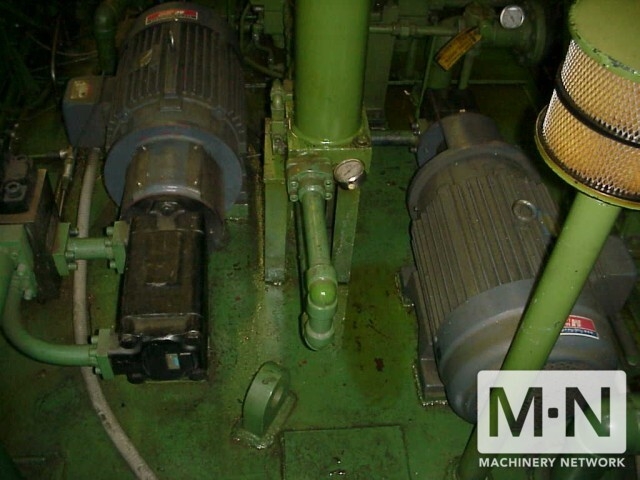

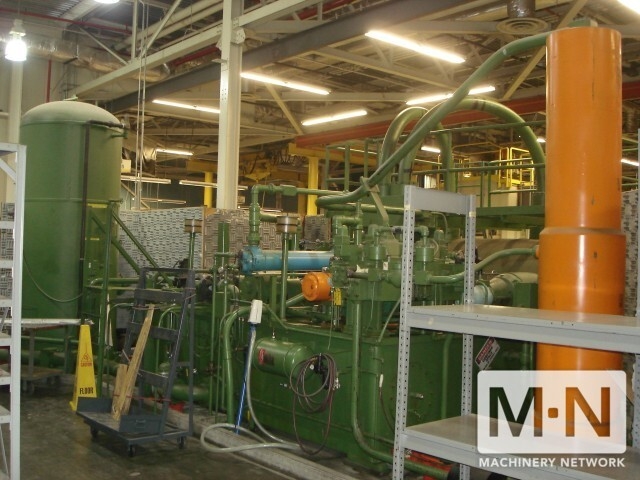

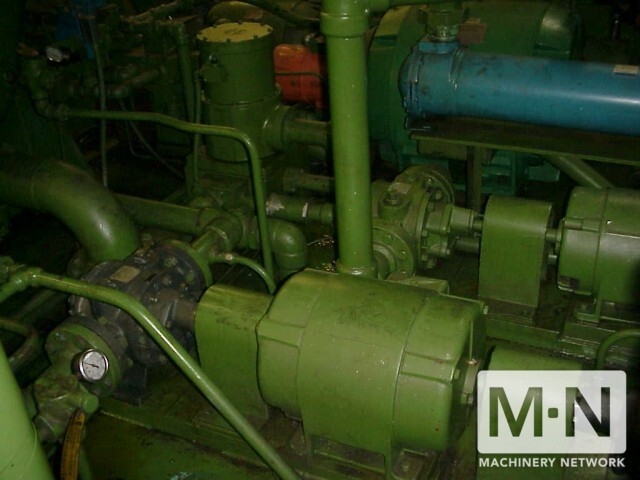

MOTOR DRIVES:
(2) EVACUATE HIGH PRESSURE PUMPS:.... 150 HP & 75 HP
(1) ACCUMULATOR CHARGE PUMP:......... 30 HP
(1) PILOT PRESSURE PUMP:............. 20 HP
(1) VACUUM & COOLER PUMP:............ 15 HP
(1) CANO-MICRO CLEAN OIL FILTER:..... 1/4 HP
(2) SHUTTLE TBL & PLATFORM HYD PUMP:. 15 HP (EACH)
CONTROLS:

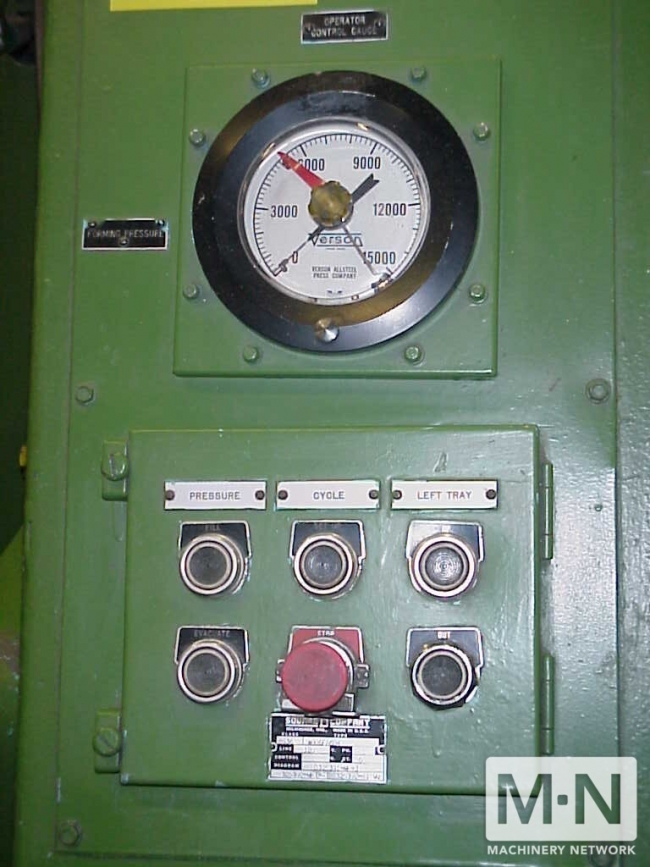

(1) OPERATOR CONTROL STATION
(2) SIDE CONTROL STATIONS LOCATED AT EACH END
OF PRESS BARREL W/ EMERGENCY STOP
EQUIPPED WITH:
THROW PAD ROLL-UP DEVICES ON ALL TABLES
SAFETY GUARDS, VACUUM PAD HOLD UP SYSTEM

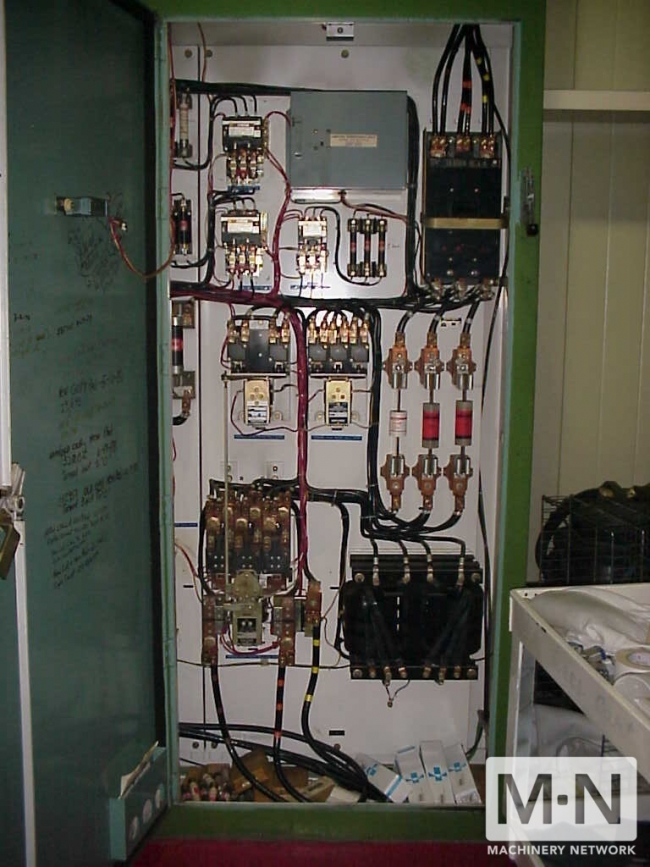

ELECTRICAL PANEL, EXTRA FLUID CELL AND WEAR PAD
LARGE QUANTITY OF SPARE PARTS
$$$ DEAL OF THE CENTURY - PRICE BEFORE REMOVAL ONLY $$$
MODEL: 41000R-50-164, SERIAL NO. 20707,
NEW 1968, R'BLT 2005
SPECIFICATIONS:
CAPACITY:............................. 41,000 TONS
FORMING PRESSURE, VARIABLE TO (MAX):.. 10,000 PSI
PRESS TABLES
TRAY SIZE @ TOP:..................... 50" X 164"
TRAY AREA @ 6" DEPTH:................ 42-1/2" X 157"
TRAY AREA @ 10" DEPTH:............... 37-1/2" X 152"
(FILLER PLATES AVAILABLE, REDUCES DEPTH OF TRAY TO 6")
MOTOR DRIVES:
(2) EVACUATE HIGH PRESSURE PUMPS:.... 150 HP & 75 HP
(1) ACCUMULATOR CHARGE PUMP:......... 30 HP
(1) PILOT PRESSURE PUMP:............. 20 HP
(1) VACUUM & COOLER PUMP:............ 15 HP
(1) CANO-MICRO CLEAN OIL FILTER:..... 1/4 HP
(2) SHUTTLE TBL & PLATFORM HYD PUMP:. 15 HP (EACH)
CONTROLS:
(1) OPERATOR CONTROL STATION
(2) SIDE CONTROL STATIONS LOCATED AT EACH END
OF PRESS BARREL W/ EMERGENCY STOP
EQUIPPED WITH:
THROW PAD ROLL-UP DEVICES ON ALL TABLES
SAFETY GUARDS, VACUUM PAD HOLD UP SYSTEM
ELECTRICAL PANEL, EXTRA FLUID CELL AND WEAR PAD
LARGE QUANTITY OF SPARE PARTS
$$$ DEAL OF THE CENTURY - PRICE BEFORE REMOVAL ONLY $$$
