OKUMA LT-300-MY
Type:
LATHES, COMBINATION, N/C & CNC
Manufacturer:
OKUMA
Model:
LT-300-MY
Condition:
Not Specified
Year:
2005
Stock #:
24680
Status:
Sold
Description:
OSP-P100L CTRL, 21.65" SWING OVER BED, (2) 10" HYDR. 3-JAW CHKS
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

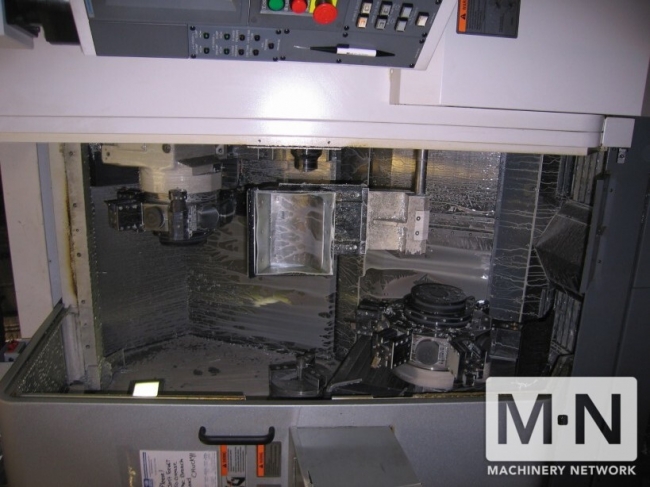

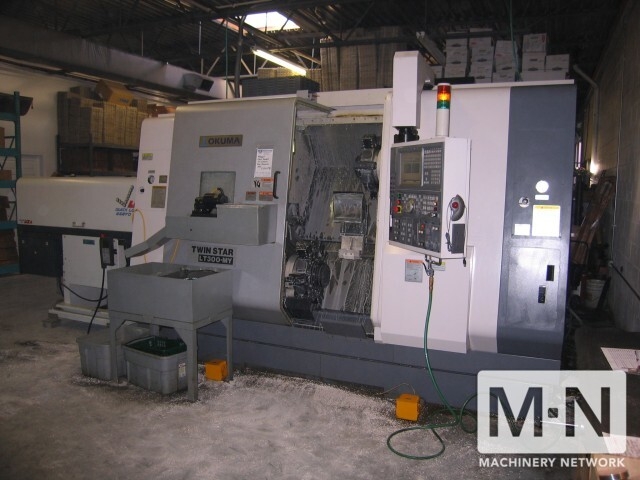

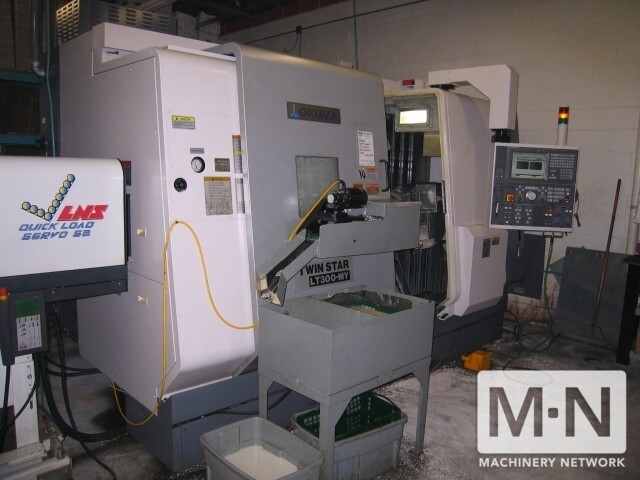

(1) USED OKUMA LT-300-MY TWIN SPINDLE, TWIN-TURRET TURNING CENTER WITH SUB-SPINDLE AND SMW MAG-TYPE BAR-FEED
(MULTI-FUNCTION C & Y MILL DRILL)
NEW 2005
SPECIFICATIONS:
TRAVEL X AXIS:...................... 10.63"
Y AXIS:...................... 6.30"
Z AXIS:...................... 36.61"
X2 AXIS:..................... 9.06"
ZA AXIS:..................... 36.61"
ZB AXIS:..................... 36.22"
W1 AXIS:..................... 37.01"
C1:.......................... 360.000 DEG
TRAVERSE RATE (X, Y, Z):............. 1181 X 1024 X 1574
FEED RATE (X, Y, Z):................. 200 IPM
MAXIMUM TURNING DIAMETERS:........... 13.8"
MAXIMUM TURNING LENGTHS:............. 35.0"
MAXIMUM SWING:....................... 21.7"
CHUCK DIAMETER:...................... 8.0"
BAR CAPACITY:........................ 2.0"
NUMBER OF MAIN SPINDLES:............. 2
MAIN SPINDLE 1
NOSE:.............................. A2-6
BORE:.............................. 2.440 "
SPEED:............................. 50 - 5000 RPM
DRIVE MOTOR (HP):.................. 30.0
RANGE:............................. 1
INDEX INCREMENT (DEGREES):......... 0.001
MAIN SPINDLE 2
NOSE:.............................. A2-6
BORE:.............................. 2.440 "
SPEED:............................. 50 - 5000 RPM
DRIVE MOTOR (HP):.................. 30.0
RANGE:............................. 1
INDEX INCREMENT (DEGREES):......... 0.001
TOOLING TYPE:........................ UPPER TURRET
# OF TOOLS TURNING:................ 12
# OF TOOLS ROTARY:................. 12
TOOL SHANK SIZE SQUARE:............ 1.0"
TOOL SHANK SIZE ROUND:............... 1.5"
TOOL SHANK SIZE ROTARY:.............. 1.0"
HORSE POWER (30 MIN.):............... 9.5
RPM:................................. 4500
MAX. NO SIMULTANEOUS CUTTING TOOLS:.. 2
MACHINE NET WEIGHT(POUNDS):.......... 22000
FLOOR LAYOUT (L X W X H):............ 139" X 96" X 92"
EQUIPPED WITH:

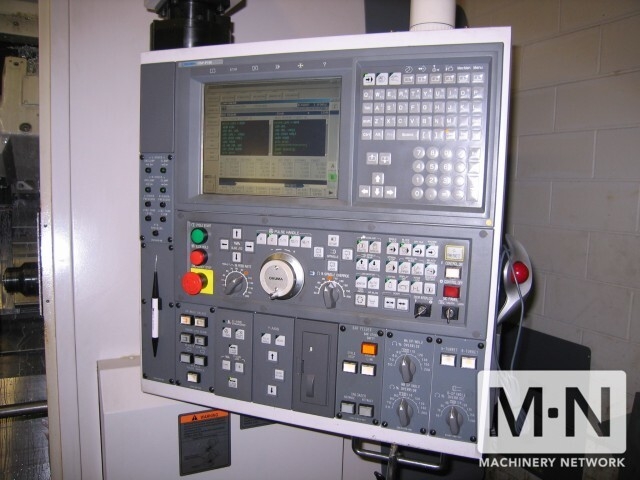

OKUMA OSP-P100L MULTI-AXIS CONTROL
HI-G CONTROL, NC TURRET, HEAVY TOOLING
TAPE DATA IN/OUT
T-SEPERATE EDIT, EDIT INTERLOCK C, PLANE CONVERSION
PROFILE GENERATION, SYNC TAPPING, HELICAL CUTTING,
NC TORQUE LIMIT
LAP4, NOSE-R 2B, USER TAKS 2, EXP. AUTO CHAMP,
PITCH ERROR COMP, TURRET POS COMP, TOOL LIFE MGMT,
TOOL WEAR COMP, I/M SWITCH, CYCLE TIME CAL,
NC WORK COUNTER & MONITOR, CYCLE TIME CHECK, LOAD MONITOR
MAC MAN, THERMAL COMP L2, 2 SADDLE MACH,
SERVO LINK NC, SERVO LINK SPDL, PROGRAMING HELP,
3D ANIMATION,
SMW MAG-TYPE BAR-FEED
(MULTI-FUNCTION C & Y MILL DRILL)
NEW 2005
SPECIFICATIONS:
TRAVEL X AXIS:...................... 10.63"
Y AXIS:...................... 6.30"
Z AXIS:...................... 36.61"
X2 AXIS:..................... 9.06"
ZA AXIS:..................... 36.61"
ZB AXIS:..................... 36.22"
W1 AXIS:..................... 37.01"
C1:.......................... 360.000 DEG
TRAVERSE RATE (X, Y, Z):............. 1181 X 1024 X 1574
FEED RATE (X, Y, Z):................. 200 IPM
MAXIMUM TURNING DIAMETERS:........... 13.8"
MAXIMUM TURNING LENGTHS:............. 35.0"
MAXIMUM SWING:....................... 21.7"
CHUCK DIAMETER:...................... 8.0"
BAR CAPACITY:........................ 2.0"
NUMBER OF MAIN SPINDLES:............. 2
MAIN SPINDLE 1
NOSE:.............................. A2-6
BORE:.............................. 2.440 "
SPEED:............................. 50 - 5000 RPM
DRIVE MOTOR (HP):.................. 30.0
RANGE:............................. 1
INDEX INCREMENT (DEGREES):......... 0.001
MAIN SPINDLE 2
NOSE:.............................. A2-6
BORE:.............................. 2.440 "
SPEED:............................. 50 - 5000 RPM
DRIVE MOTOR (HP):.................. 30.0
RANGE:............................. 1
INDEX INCREMENT (DEGREES):......... 0.001
TOOLING TYPE:........................ UPPER TURRET
# OF TOOLS TURNING:................ 12
# OF TOOLS ROTARY:................. 12
TOOL SHANK SIZE SQUARE:............ 1.0"
TOOL SHANK SIZE ROUND:............... 1.5"
TOOL SHANK SIZE ROTARY:.............. 1.0"
HORSE POWER (30 MIN.):............... 9.5
RPM:................................. 4500
MAX. NO SIMULTANEOUS CUTTING TOOLS:.. 2
MACHINE NET WEIGHT(POUNDS):.......... 22000
FLOOR LAYOUT (L X W X H):............ 139" X 96" X 92"
EQUIPPED WITH:
OKUMA OSP-P100L MULTI-AXIS CONTROL
HI-G CONTROL, NC TURRET, HEAVY TOOLING
TAPE DATA IN/OUT
T-SEPERATE EDIT, EDIT INTERLOCK C, PLANE CONVERSION
PROFILE GENERATION, SYNC TAPPING, HELICAL CUTTING,
NC TORQUE LIMIT
LAP4, NOSE-R 2B, USER TAKS 2, EXP. AUTO CHAMP,
PITCH ERROR COMP, TURRET POS COMP, TOOL LIFE MGMT,
TOOL WEAR COMP, I/M SWITCH, CYCLE TIME CAL,
NC WORK COUNTER & MONITOR, CYCLE TIME CHECK, LOAD MONITOR
MAC MAN, THERMAL COMP L2, 2 SADDLE MACH,
SERVO LINK NC, SERVO LINK SPDL, PROGRAMING HELP,
3D ANIMATION,
SMW MAG-TYPE BAR-FEED
