MITSUBISHI MPA-V45

Type:

Vertical Machining Centers

Manufacturer:

MITSUBISHI

Model:

MPA-V45

Condition:

Not Specified

Year:

1985

Stock #:

24677

Status:

Sold

Description:

MELDAS M2 CTRL, TRVLS: 31" x 15" x 17", CAT-40, 6K RPM, 10HP, 30 ATC

Location:

Alabama, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

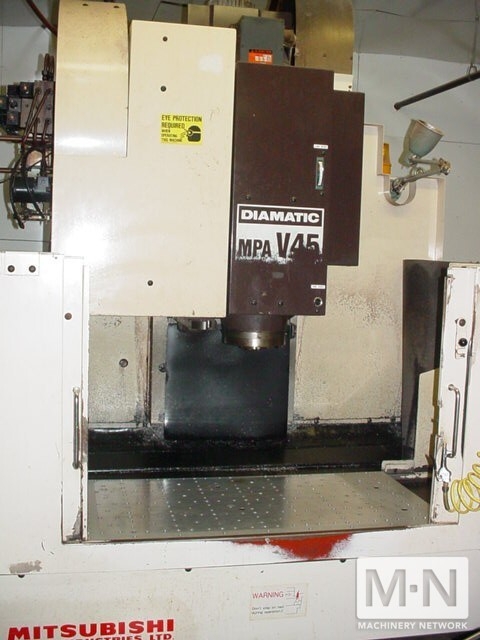

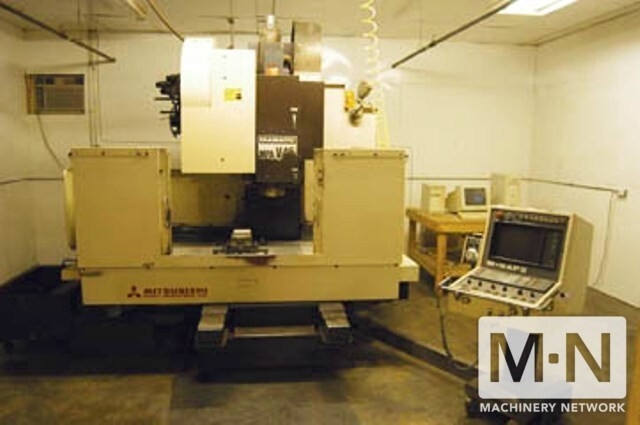

(1) USED MITSUBISHI MPA-V45 CNC VERTICAL MACHINING CENTER
S/N: J61400, NEW 1985

SPECIFICATIONS:
TRAVEL - X AXIS:........................ 51.5"
- Y AXIS:........................ 25.75"
- Y AXIS:........................ 27.72"
TABLE DIMENSIONS:....................... 43.31" x 17.72"

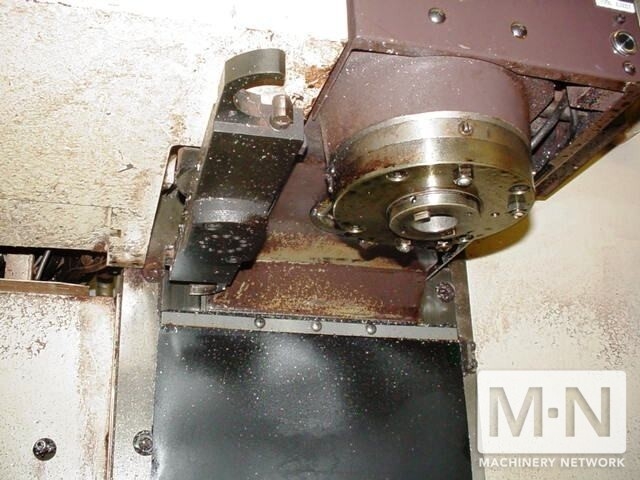

SPINDLE MOTOR:.......................... 10 HP
SPINDLE SPEEDS:......................... 60-6000 RPM
SPINDLE TAPER:.......................... CAT 50
SPINDLE TO TABLE MIN/MAX:............... 5.91" / 23.62"
SPINDLE CENTER TO COLUMN:............... 15-5/8"

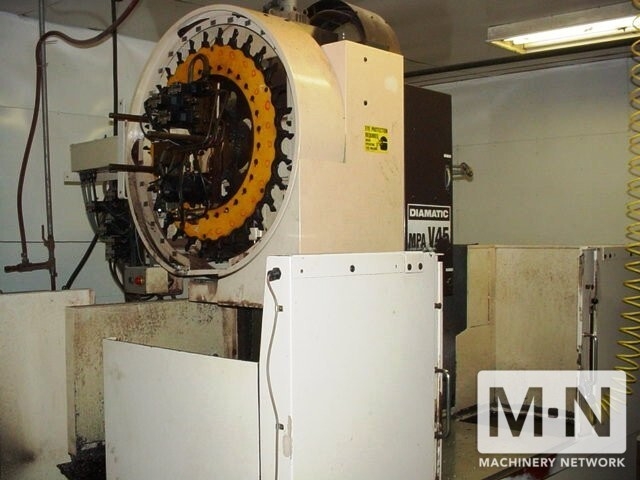

TOOL MAGAZINE CAPACITY:................. 30 ATC
TOOL STORAGE CAPACITY: ................. 30
TOOL SELECTION: ........................ RANDOM/BI DIRECTIONAL
MAX ADJACENT TOOL DIA: ................. 2.95" (75MM)
MAX DIA W/ADJACENT POCKET EMPTY: ....... 5.12" (130 MM)
MAX TOOL WEIGHT: ....................... 15.4 LBS (7 KG)
MAX TOOL LENGTH: ....................... 9.84" (250 MM)
CYCLE TIME: ............................ 7 SEC.
RAPID TRAVERSE (X & Y):................. 157 IPM
APPROX. MACHINE WEIGHT:................. 22,000 LBS
TABLE LOAD CAPACITY:.................... 1763 LBS
AIR REQUIRED:........................... 80 PSI
SHIPPING WEIGHT:........................ 13,227 LBS (6000 KG)
MACHINE HEIGHT:......................... 120" (3 M)
MACHINE WIDTH:.......................... 73" (1870 MM)
MACHINE DEPTH:.......................... 105" (2670 MM)
WORKING AREA REQUIRED:.................. 120" X 144"

EQUIPPED WITH:

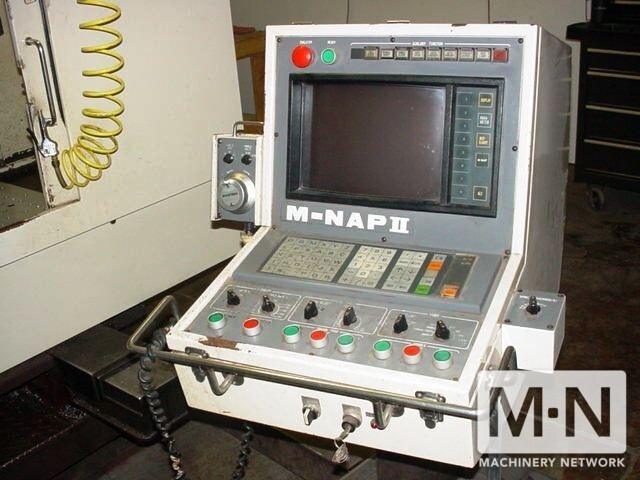

MELDAS M2 CNC CONTROLS
FULL ENCLOSURE SPLASH GUARDS
STAINLESS STEEL WAY COVERS
HALOGEN WORKLIGHT
FLOOD COOLANT SYSTEM
RECTANGULAR SQUARE BOX WAYS
STANDARD RS232 I/O * U.L. APPROVED
RECTANGULAR SQUARE BOX WAYS
220 VOLT 60 HZ

Spec Sheet:

(1) USED MITSUBISHI MPA-V45 CNC VERTICAL MACHINING CENTER
S/N: J61400, NEW 1985

SPECIFICATIONS:
TRAVEL - X AXIS:........................ 51.5"
- Y AXIS:........................ 25.75"
- Y AXIS:........................ 27.72"
TABLE DIMENSIONS:....................... 43.31" x 17.72"
SPINDLE MOTOR:.......................... 10 HP
SPINDLE SPEEDS:......................... 60-6000 RPM
SPINDLE TAPER:.......................... CAT 50
SPINDLE TO TABLE MIN/MAX:............... 5.91" / 23.62"
SPINDLE CENTER TO COLUMN:............... 15-5/8"
TOOL MAGAZINE CAPACITY:................. 30 ATC
TOOL STORAGE CAPACITY: ................. 30
TOOL SELECTION: ........................ RANDOM/BI DIRECTIONAL
MAX ADJACENT TOOL DIA: ................. 2.95" (75MM)
MAX DIA W/ADJACENT POCKET EMPTY: ....... 5.12" (130 MM)
MAX TOOL WEIGHT: ....................... 15.4 LBS (7 KG)
MAX TOOL LENGTH: ....................... 9.84" (250 MM)
CYCLE TIME: ............................ 7 SEC.
RAPID TRAVERSE (X & Y):................. 157 IPM
APPROX. MACHINE WEIGHT:................. 22,000 LBS
TABLE LOAD CAPACITY:.................... 1763 LBS
AIR REQUIRED:........................... 80 PSI
SHIPPING WEIGHT:........................ 13,227 LBS (6000 KG)
MACHINE HEIGHT:......................... 120" (3 M)
MACHINE WIDTH:.......................... 73" (1870 MM)
MACHINE DEPTH:.......................... 105" (2670 MM)
WORKING AREA REQUIRED:.................. 120" X 144"

EQUIPPED WITH:
MELDAS M2 CNC CONTROLS
FULL ENCLOSURE SPLASH GUARDS
STAINLESS STEEL WAY COVERS
HALOGEN WORKLIGHT
FLOOD COOLANT SYSTEM
RECTANGULAR SQUARE BOX WAYS
STANDARD RS232 I/O * U.L. APPROVED
RECTANGULAR SQUARE BOX WAYS
220 VOLT 60 HZ
