MAZAK M4-1000
Type:
LATHES, FLAT BED, N/C & CNC
Manufacturer:
MAZAK
Model:
M4-1000
Condition:
Not Specified
Year:
1995
Stock #:
24658
Status:
Sold
Description:
MAZATROL T-PLUS, 21.65" x 40.2", 22" SWG, 3.14" BORE
Location:
Pennsylvania, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

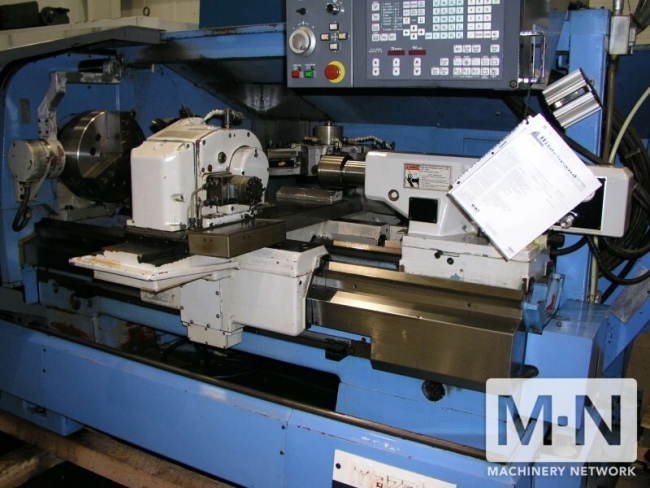

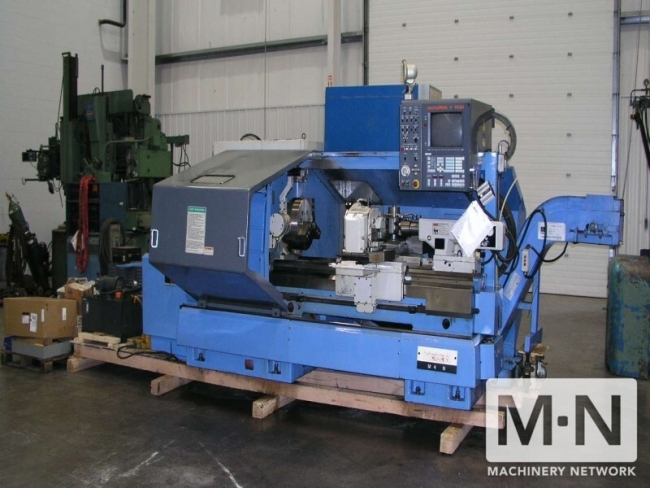

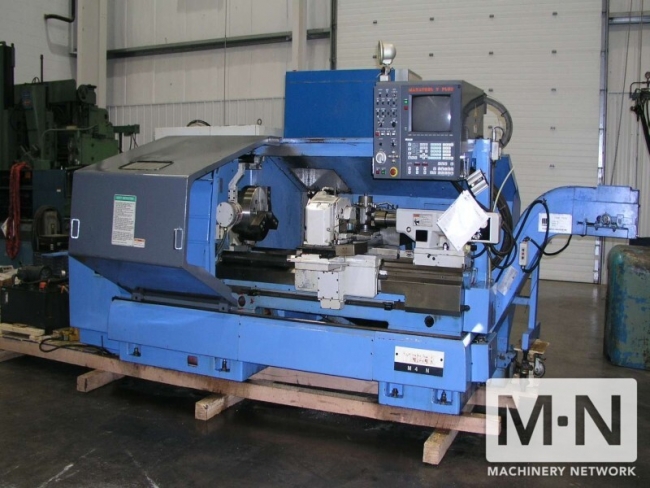

(1) USED MAZAK M4-1000 FLAT BED CNC LATHE, NEW 1995
SPECIFICATIONS:
MAXIMUM SWING:......................... 22"
MAXIMUM SWING OVER CROSS SLIDE:........ 11"
MAXIMUM CUTTING DIAMETER:.............. 21"
DISTANCE BETWEEN CENTERS:.............. 38"
SPINDLE NOSE:.......................... JIS A2-8 (ASA A2-8)
SPINDLE BORE:.......................... 3.14"
SPINDLE SPEEDS:........................ 5 TO 2200 RPM
NUMBER OF SPEED RANGES:................ 3
TYPE OF TURRETS:
FRONT:............................... VERTICAL DISK
REAR:................................ BORING
NUMBER OF TOOLS:....................... 14
FRONT:............................... 8
REAR:................................ 6
TOOL SIZE:
TURNING & FACING:.................... 1" X 1" X 5.9" LONG
BORING BAR MAXIMUM DIAMETER:......... 2"
TOOL CHANGE TIME (1 STEP/FULL STEP)
FRONT:............................... 2.6/5.0 SECONDS
REAR:................................ 3.5/5.2 SECONDS
AXIS TRAVEL:
X AXIS:.............................. 21.65"
Z AXIS:.............................. 40.2"
RAPID TRAVERSE:
X AXIS:.............................. 394 IPM
Z AXIS:.............................. 472 IPM
UNIDIRECTIONAL POS ACCURACY X AXIS:.... .0003"/4"
UNIDIRECTIONAL POS ACCURACY Z AXIS:.... .0005"/12"
UNIDIRECTIONAL REPEATABILITY X AXIS:... +/- .0001"
UNIDIRECTIONAL REPEATABILITY Z AXIS:... +/- .0002"
TAILSTOCK:
SPINDLE CENTER:...................... MT #4
SPINDLE DIAMETER:.................... 3.34"
SPINDLE TRAVEL:...................... 5"
OVERALL SHIPPING SIZE:................. 235" L-R
93" F-B X 93" H
TOTAL WEIGHT:.......................... APPROX. 14,000 LB
EQUIPPED WITH:

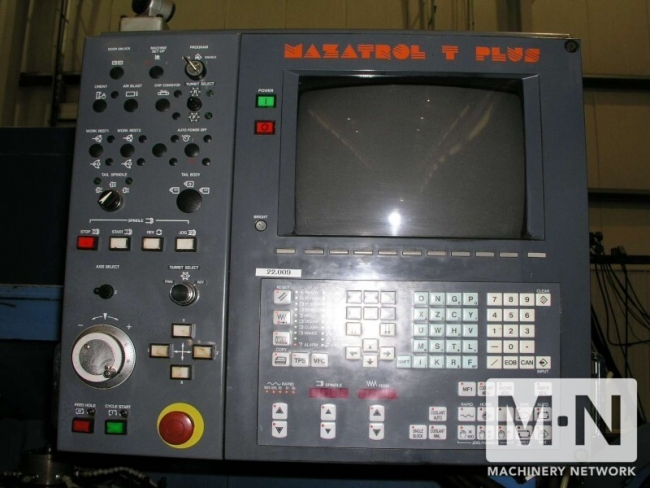

MAZATROL T-PLUS CONTROL 12" AMBER CRT (MONOCHROME)
MAZATROL CONVERSATIONAL PROGRAMMING
EIA/ISO INPUT FUNCTION (6 CODE PROGRAMMING) WITH T-PLUS OPTION CASSETTE FOR EIA/ISO FUNCTION
FLOPPY DISK DRIVE
15" 3-JAW KITAGAWA POWER HYDRAULIC SCROLL TYPE CHUCK
SWING DOWN MANUAL TOOL EYE FOR FRONT TURRET ONLY
CHIP CONVEYOR
TORIT MIST COLLECTOR (MODEL # DMC-MMB) MOUNTED TO TOP REAR
MANUAL HYDRAULIC TAILSTOCK
LARGE SELECTION OF ASSORTED TOOLING
ALL AVAILABLE MANUALS
COOLANT SYSTEM
EXTERNAL HYDRAULIC SYSTEM
MULTI-TOP TRANSFORMER
20 HP MOTOR, WIRED FOR 3 PHASE, 50/60 CYCLE, 230/460 VOLTS
SPECIFICATIONS:
MAXIMUM SWING:......................... 22"
MAXIMUM SWING OVER CROSS SLIDE:........ 11"
MAXIMUM CUTTING DIAMETER:.............. 21"
DISTANCE BETWEEN CENTERS:.............. 38"
SPINDLE NOSE:.......................... JIS A2-8 (ASA A2-8)
SPINDLE BORE:.......................... 3.14"
SPINDLE SPEEDS:........................ 5 TO 2200 RPM
NUMBER OF SPEED RANGES:................ 3
TYPE OF TURRETS:
FRONT:............................... VERTICAL DISK
REAR:................................ BORING
NUMBER OF TOOLS:....................... 14
FRONT:............................... 8
REAR:................................ 6
TOOL SIZE:
TURNING & FACING:.................... 1" X 1" X 5.9" LONG
BORING BAR MAXIMUM DIAMETER:......... 2"
TOOL CHANGE TIME (1 STEP/FULL STEP)
FRONT:............................... 2.6/5.0 SECONDS
REAR:................................ 3.5/5.2 SECONDS
AXIS TRAVEL:
X AXIS:.............................. 21.65"
Z AXIS:.............................. 40.2"
RAPID TRAVERSE:
X AXIS:.............................. 394 IPM
Z AXIS:.............................. 472 IPM
UNIDIRECTIONAL POS ACCURACY X AXIS:.... .0003"/4"
UNIDIRECTIONAL POS ACCURACY Z AXIS:.... .0005"/12"
UNIDIRECTIONAL REPEATABILITY X AXIS:... +/- .0001"
UNIDIRECTIONAL REPEATABILITY Z AXIS:... +/- .0002"
TAILSTOCK:
SPINDLE CENTER:...................... MT #4
SPINDLE DIAMETER:.................... 3.34"
SPINDLE TRAVEL:...................... 5"
OVERALL SHIPPING SIZE:................. 235" L-R
93" F-B X 93" H
TOTAL WEIGHT:.......................... APPROX. 14,000 LB
EQUIPPED WITH:
MAZATROL T-PLUS CONTROL 12" AMBER CRT (MONOCHROME)
MAZATROL CONVERSATIONAL PROGRAMMING
EIA/ISO INPUT FUNCTION (6 CODE PROGRAMMING) WITH T-PLUS OPTION CASSETTE FOR EIA/ISO FUNCTION
FLOPPY DISK DRIVE
15" 3-JAW KITAGAWA POWER HYDRAULIC SCROLL TYPE CHUCK
SWING DOWN MANUAL TOOL EYE FOR FRONT TURRET ONLY
CHIP CONVEYOR
TORIT MIST COLLECTOR (MODEL # DMC-MMB) MOUNTED TO TOP REAR
MANUAL HYDRAULIC TAILSTOCK
LARGE SELECTION OF ASSORTED TOOLING
ALL AVAILABLE MANUALS
COOLANT SYSTEM
EXTERNAL HYDRAULIC SYSTEM
MULTI-TOP TRANSFORMER
20 HP MOTOR, WIRED FOR 3 PHASE, 50/60 CYCLE, 230/460 VOLTS
