MITUTOYO BRIGHT 910
Type:
COORDINATE MEASURING MACHINES, (Including N/C & CNC)
Manufacturer:
MITUTOYO
Model:
BRIGHT 910
Condition:
Not Specified
Year:
1996
Stock #:
24620
Status:
Sold
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

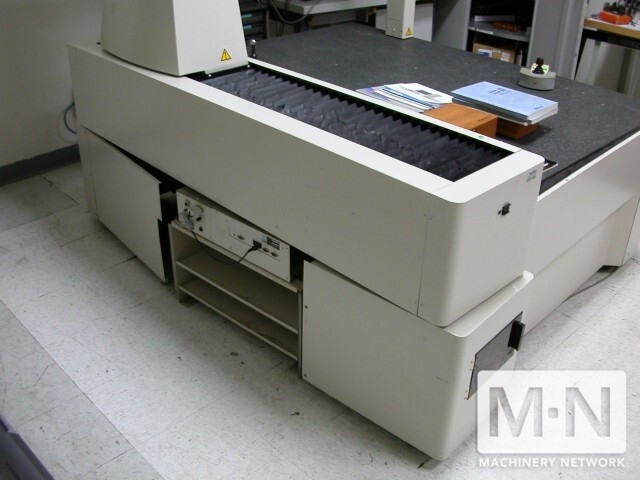

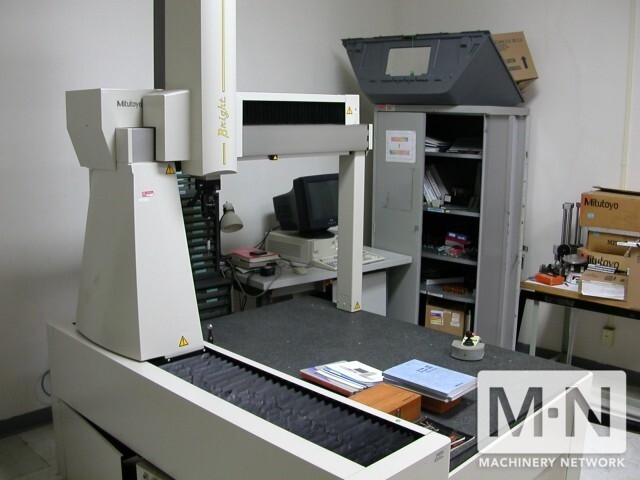

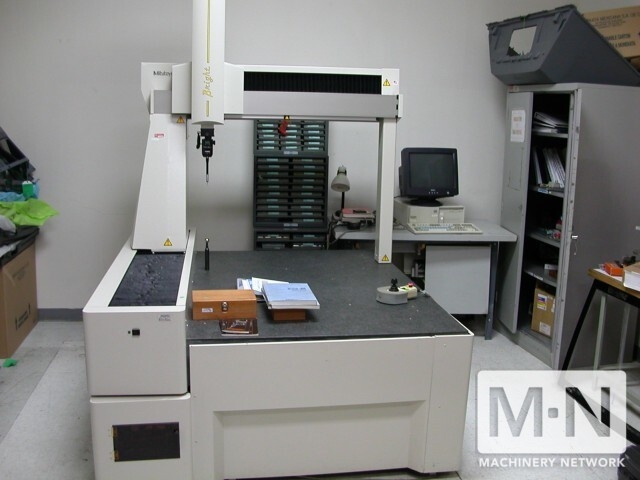

(1) USED MITUTOYO BRIGHT 910 (DCC) COORDINATE MEASURING

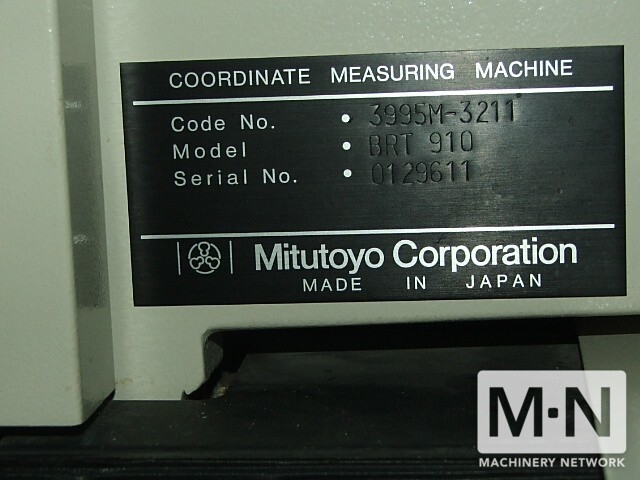

MACHINE, S/N: 0129611, NEW 1996
SPECIFICATIONS:
MEASURING RANGE - X AXIS: 35.43"
- Y AXIS: 39.37"
- Z AXIS: 23.62"
MAX. WORKPIECE HEIGHT: 29.13"
MAX. WORKPIECE WEIGHT: 1760 LBS
MEASURING TABLE: GRANITE
MEASURING WORK AREA: 43.11" X 67.72"
WORKPIECE CLAMPING: M8 x 1.25MM
RESOLUTION: .000005"
MAX DRIVE SPEED (CNC): 16.93"/SEC
MAX ACCELERATION: 66.81"/SEC2
MACHINE HEIGHT: 106.22"
MACHINE WIDTH: 62.6"
MACHINE DEPTH: 75.98
MACHINE WEIGHT: 4155 LBS
EQUIPPED WITH:
GEOPAK 2100 SOFTWARE
RENISHAW M.I.H. PROBE HEAD WITH TP-2 TOUCH PROBE
IBM350 PC
MACHINE, S/N: 0129611, NEW 1996
SPECIFICATIONS:
MEASURING RANGE - X AXIS: 35.43"
- Y AXIS: 39.37"
- Z AXIS: 23.62"
MAX. WORKPIECE HEIGHT: 29.13"
MAX. WORKPIECE WEIGHT: 1760 LBS
MEASURING TABLE: GRANITE
MEASURING WORK AREA: 43.11" X 67.72"
WORKPIECE CLAMPING: M8 x 1.25MM
RESOLUTION: .000005"
MAX DRIVE SPEED (CNC): 16.93"/SEC
MAX ACCELERATION: 66.81"/SEC2
MACHINE HEIGHT: 106.22"
MACHINE WIDTH: 62.6"
MACHINE DEPTH: 75.98
MACHINE WEIGHT: 4155 LBS
EQUIPPED WITH:
GEOPAK 2100 SOFTWARE
RENISHAW M.I.H. PROBE HEAD WITH TP-2 TOUCH PROBE
IBM350 PC
