MORI SEIKI SL-25B/500
Type:
LATHES, COMBINATION, N/C & CNC
Manufacturer:
MORI SEIKI
Model:
SL-25B/500
Condition:
Not Specified
Year:
1993
Stock #:
24569
Status:
Sold
Description:
YASNAC CTRL, 10" CHUCK, T/P, EXCELLENT
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

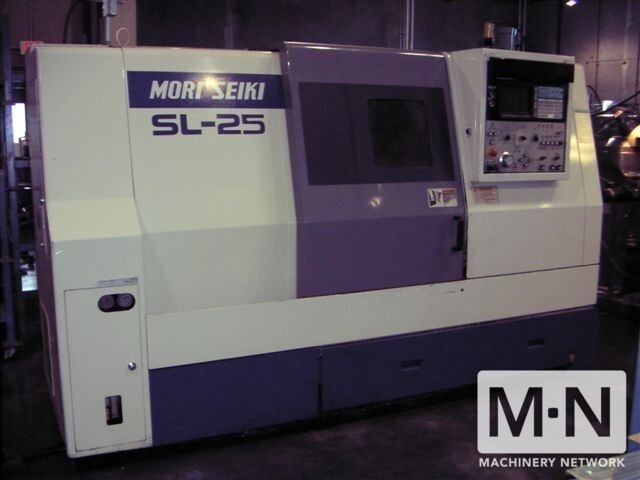

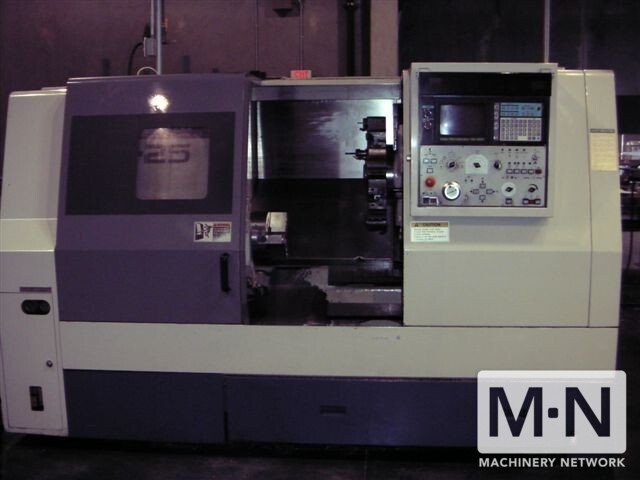

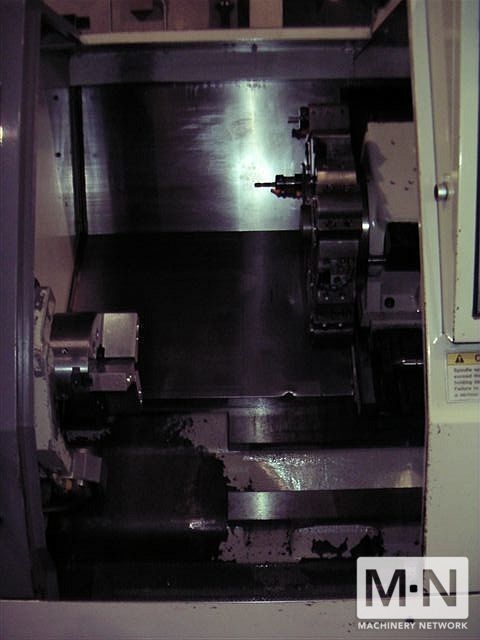

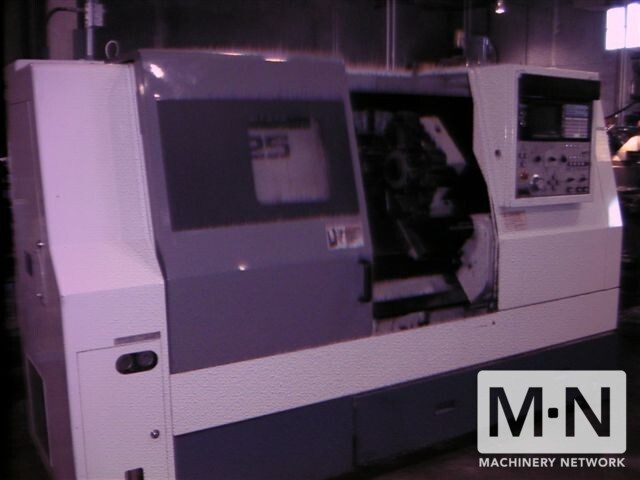

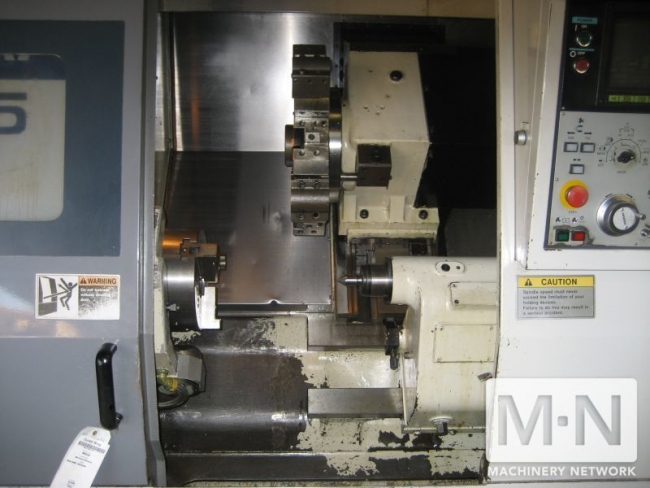

(1) USED MORI SEIKI MODEL SL-25B/500 CNC LATHE
NEW 1993
SPECIFICATIONS:
SWING OVER BED 20.5"
SWING OVER CROSS SLIDE 13.8"
CENTER DISTANCE 24.6"
MAX. BAR CAPACITY 2.625"
MAX. TURNING LENGTH 20.9"
MAX. MACHINING DIAMETER 10.2"
CHUCK SIZE 10"

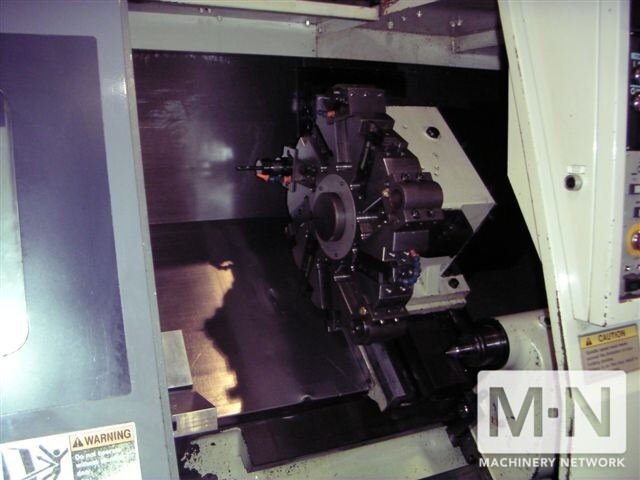

TURRET CAPACITY 10 TOOLS
SPINDLE BORE 3.1"
SPINDLE SPEEDS 42-4200 RPM
RAPID FEED RATE-X AXIS 472 IPM
-Z AXIS 590 IPM
TAILSTOCK TAPER MT-3
TAILSTOCK TRAVEL 19.3"
TAILSTOCK QUILL STROKE 3.3"
MAIN MOTOR 25/30HP
EQUIPPED WITH:

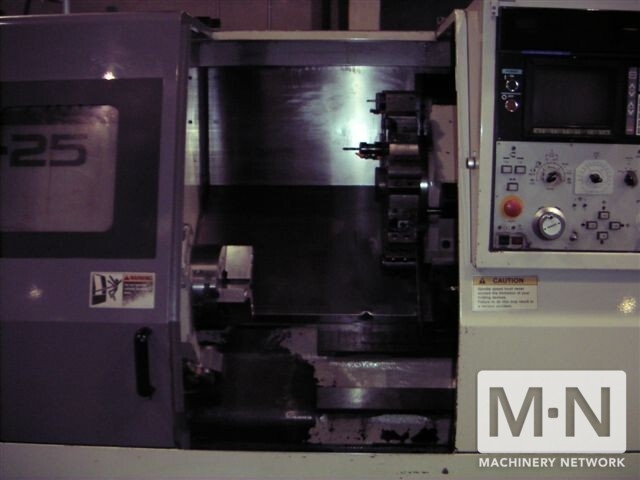

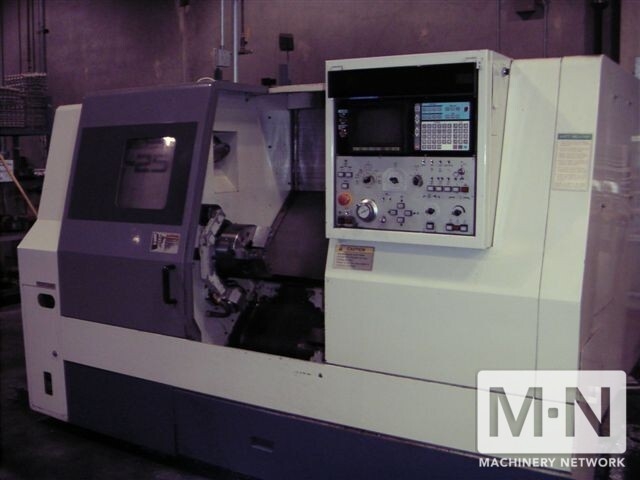

YASNAC LX-3.MORIC I CONTROL
TOOL PRESETTER

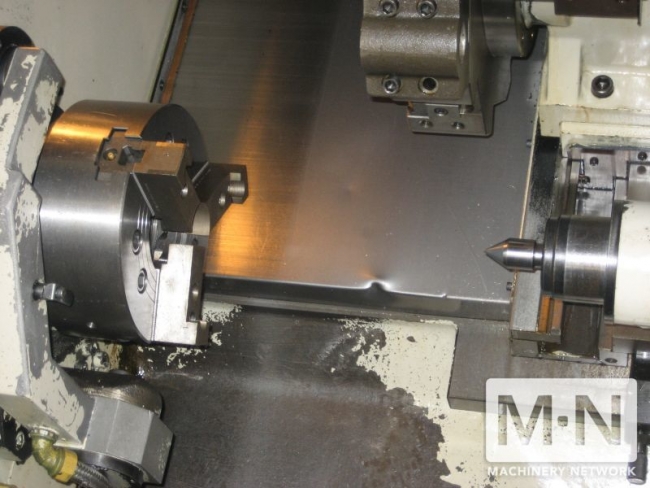

ATS COLLET NOSE (ATS-A6-5CB)AND 10" 3-JAW CHUCK.
NEW 1993
SPECIFICATIONS:
SWING OVER BED 20.5"
SWING OVER CROSS SLIDE 13.8"
CENTER DISTANCE 24.6"
MAX. BAR CAPACITY 2.625"
MAX. TURNING LENGTH 20.9"
MAX. MACHINING DIAMETER 10.2"
CHUCK SIZE 10"
TURRET CAPACITY 10 TOOLS
SPINDLE BORE 3.1"
SPINDLE SPEEDS 42-4200 RPM
RAPID FEED RATE-X AXIS 472 IPM
-Z AXIS 590 IPM
TAILSTOCK TAPER MT-3
TAILSTOCK TRAVEL 19.3"
TAILSTOCK QUILL STROKE 3.3"
MAIN MOTOR 25/30HP
EQUIPPED WITH:
YASNAC LX-3.MORIC I CONTROL
TOOL PRESETTER
ATS COLLET NOSE (ATS-A6-5CB)AND 10" 3-JAW CHUCK.
