SHEFFIELD RS-170
Type:
COORDINATE MEASURING MACHINES, (Including N/C & CNC)
Manufacturer:
SHEFFIELD
Model:
RS-170
Condition:
Not Specified
Year:
1989
Stock #:
23604
Status:
Sold
Description:
60" x 69" x 48", PH17/HP10M6, PHC 10 CONTROLLER, DCC
Location:
Illinois, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

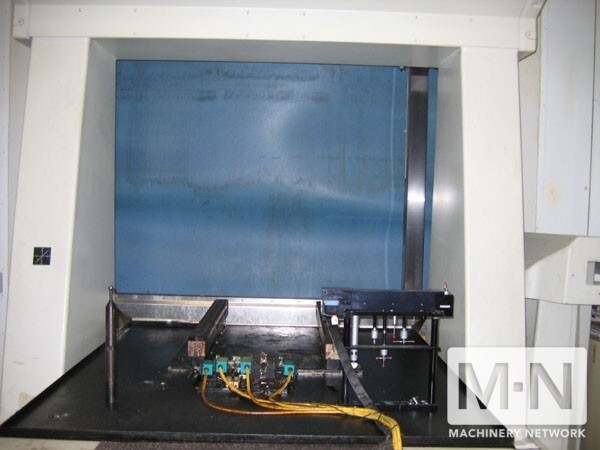

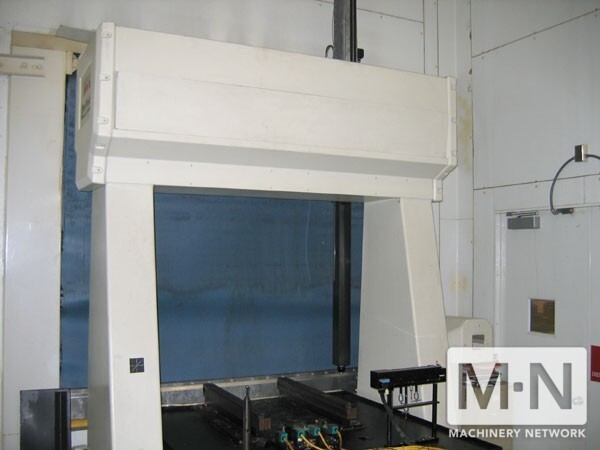

(1) USED SHEFFIELD CORDAX RS-170 DCC COORDINATE MEASURING MACHINE, S/N: A-0458-0989
SPECIFICATIONS:
TRAVELS - X AXIS: 60"
- Y AXIS: 69"
- Z AXIS: 48"
WORK TABLE DIMS: 62"x62"
MAX. TABLE LOAD: 10,000 LBS
REPEATABILITY: .00012" (PER B89.1.12M)
LINEAR ACCUARCY: .00022" (PER B89.1.12M)
VOLUMETRIC ACCUARCY: .00063" (PER B89.1.12M)
MACHINE DIMS: 146"L x 96"W X 194"H
MACHINE WEIGHT: 12,750 LBS
DISTANCE BETWEEN HOUSINGS: 66" DISTANCE UNDER THE RAIL: 58"
EQUIPPED WITH:
RENISHAW AUTO INDEXING PROBE HEAD

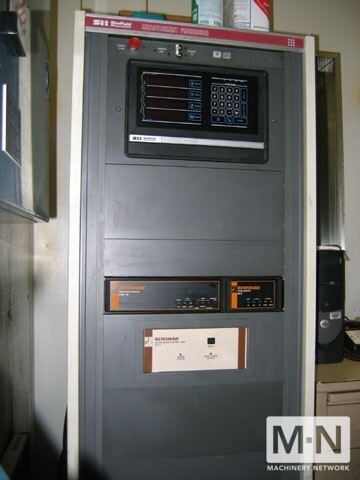

TEMPERATURE CONTROLLED ROOM (16' X 18' X 17' HIGH) RENISHAW HP10M6 PROBE HEAD RENISHAW PHC 10 CONTROLLER RENISHAW PH17 PROBE INTERFACE RENISHAW ACC1 AUTO CHANGE CONTROL UNIT MISC. RENISHAW PROBES SHEFFIELD 4 AXIS DRO
SPECIFICATIONS:
TRAVELS - X AXIS: 60"
- Y AXIS: 69"
- Z AXIS: 48"
WORK TABLE DIMS: 62"x62"
MAX. TABLE LOAD: 10,000 LBS
REPEATABILITY: .00012" (PER B89.1.12M)
LINEAR ACCUARCY: .00022" (PER B89.1.12M)
VOLUMETRIC ACCUARCY: .00063" (PER B89.1.12M)
MACHINE DIMS: 146"L x 96"W X 194"H
MACHINE WEIGHT: 12,750 LBS
DISTANCE BETWEEN HOUSINGS: 66" DISTANCE UNDER THE RAIL: 58"
EQUIPPED WITH:
RENISHAW AUTO INDEXING PROBE HEAD
TEMPERATURE CONTROLLED ROOM (16' X 18' X 17' HIGH) RENISHAW HP10M6 PROBE HEAD RENISHAW PHC 10 CONTROLLER RENISHAW PH17 PROBE INTERFACE RENISHAW ACC1 AUTO CHANGE CONTROL UNIT MISC. RENISHAW PROBES SHEFFIELD 4 AXIS DRO
