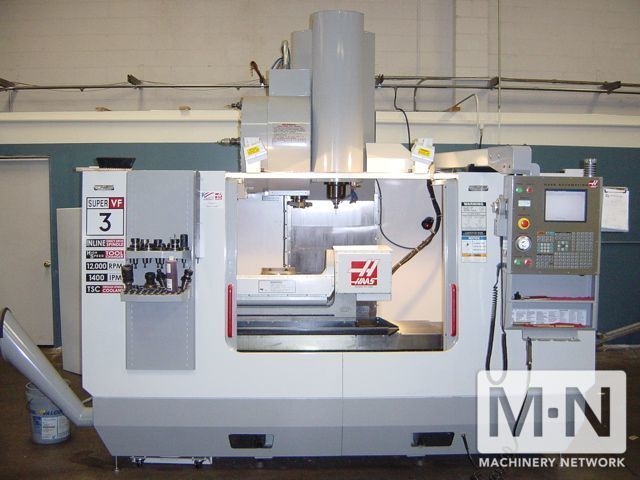

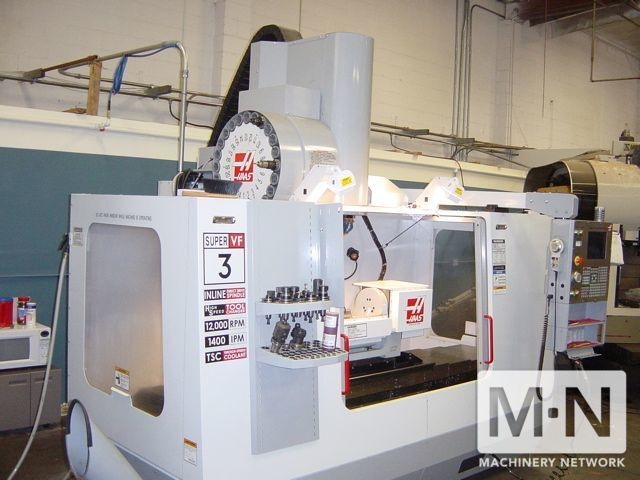

HAAS SUPER VF-3
Type:
Vertical Machining Centers
Manufacturer:
HAAS
Model:
SUPER VF-3
Condition:
Not Specified
Year:
2004
Stock #:
22767
Status:
Sold
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED HAAS VF-3 5-AXIS CNC VERTICAL MACHINING CENTER
NEW 2004
** MACHINE HAS 66 SPINDLE HOURS AND 96 HOURS OF ON TIME **
MACHINE IS EQUIPPED WITH A HAAS ROTARY AND TRUNION TABLE
SPECIFICATIONS:
TABLE SIZE: 48" x 18"
MAXIMUM PALLET LOAD: 3,000 LBS
SPINDLE NOSE TO PALLET TOP: 4" - 29"
TRAVELS -X AXIS: 40"
-Y AXIS: 20"
-Z AXIS: 25"
RAPID TRAVERSE RATE: 710 IPM
CUTTING FEED RATE: .1 - 500 IPM
SPINDLE TAPER: CAT 40
SPINDLE SPEEDS (2-SPD GRD): 10,000 RPM
SPINDLE MOTOR: 20 HP
TOOL CHANGER CAPACITY: 24+1 SIDE ATC
MAXIMUM TOOL WEIGHT: 12 LBS
MACHINE WEIGHT: 13,500 LBS
APPROXIMATE DIMENSIONS: 129" x 110"
x 119.5"
EQUIPPED WITH:

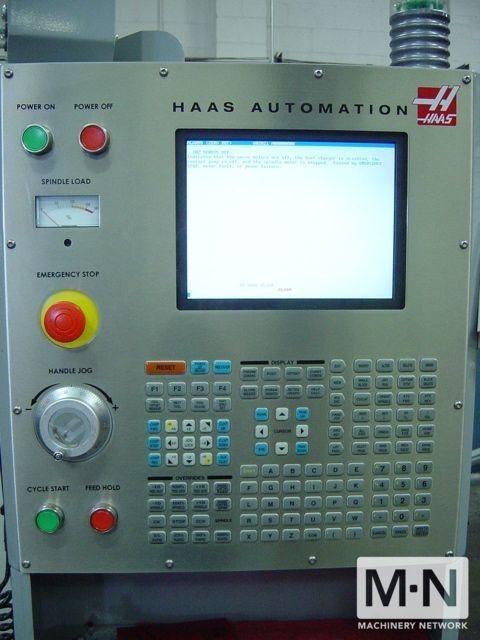

HAAS 32-BIT CNC CONTROL W/ 12" MONOCHROME CRT
COOLANT THROUGH THE SPINDLE
PROBE SENSOR
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS/SOLID)
OPT. 10000 RPM 20 HP 2-SPEED GEARED SPINDLE
HIGH INTENSITY LIGHTING

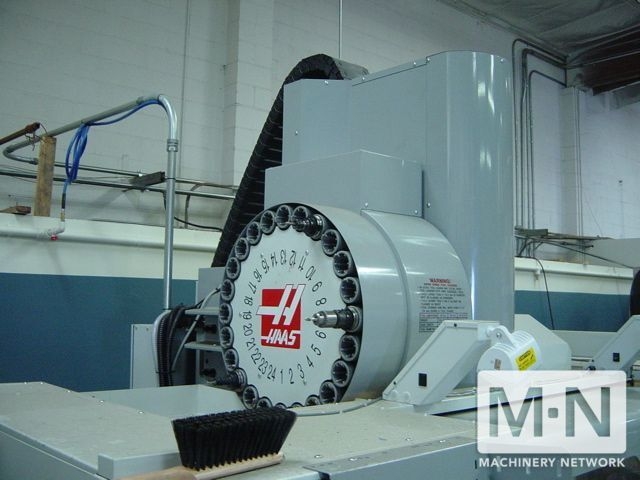

24+1 SIDE MOUNT TOOL CHANGER
PRE-WIRED FOR 4TH AXIS
USER DEFINEABLE MACROS
COORDINATE ROTATION & SCALING
REMOTE JOG HANDLE
3.5" 1.44MB FLOPPY DISK DRIVE
CHIP REMOVAL AUGER
MISTBUSTER MIST COLLECTION
AIR FILTRATION SYSTEM
DELTA WYE MOTOR
TOOL RACK & PAN MOUNTED ON MACHINE
STANDARD COOLANT SYSTEM W/ TANK & PUMP
FULLY ENCLOSED GUARDING
ALL AVAILABLE MANUALS
NEW 2004
** MACHINE HAS 66 SPINDLE HOURS AND 96 HOURS OF ON TIME **
MACHINE IS EQUIPPED WITH A HAAS ROTARY AND TRUNION TABLE
SPECIFICATIONS:
TABLE SIZE: 48" x 18"
MAXIMUM PALLET LOAD: 3,000 LBS
SPINDLE NOSE TO PALLET TOP: 4" - 29"
TRAVELS -X AXIS: 40"
-Y AXIS: 20"
-Z AXIS: 25"
RAPID TRAVERSE RATE: 710 IPM
CUTTING FEED RATE: .1 - 500 IPM
SPINDLE TAPER: CAT 40
SPINDLE SPEEDS (2-SPD GRD): 10,000 RPM
SPINDLE MOTOR: 20 HP
TOOL CHANGER CAPACITY: 24+1 SIDE ATC
MAXIMUM TOOL WEIGHT: 12 LBS
MACHINE WEIGHT: 13,500 LBS
APPROXIMATE DIMENSIONS: 129" x 110"
x 119.5"
EQUIPPED WITH:
HAAS 32-BIT CNC CONTROL W/ 12" MONOCHROME CRT

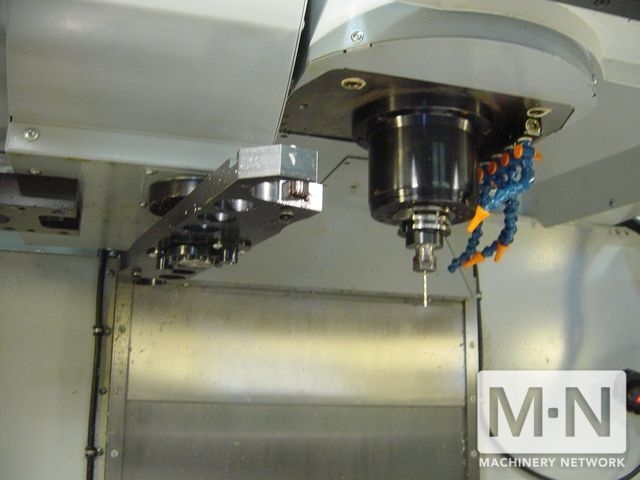

COOLANT THROUGH THE SPINDLE
PROBE SENSOR
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS/SOLID)
OPT. 10000 RPM 20 HP 2-SPEED GEARED SPINDLE
HIGH INTENSITY LIGHTING
24+1 SIDE MOUNT TOOL CHANGER
PRE-WIRED FOR 4TH AXIS
USER DEFINEABLE MACROS
COORDINATE ROTATION & SCALING
REMOTE JOG HANDLE
3.5" 1.44MB FLOPPY DISK DRIVE
CHIP REMOVAL AUGER
MISTBUSTER MIST COLLECTION
AIR FILTRATION SYSTEM
DELTA WYE MOTOR
TOOL RACK & PAN MOUNTED ON MACHINE
STANDARD COOLANT SYSTEM W/ TANK & PUMP
FULLY ENCLOSED GUARDING
ALL AVAILABLE MANUALS
