DOOSAN DOOMAC 80V
Type:
Vertical Machining Centers
Manufacturer:
DOOSAN
Model:
DOOMAC 80V
Condition:
Not Specified
Year:
1997
Stock #:
22718
Status:
Sold
Description:
Fanuc Series O-M, 3600RPM, 18.5/15KW Spindle Drive Motor, N.S.T 50 Spindle Taper, Coolant,
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

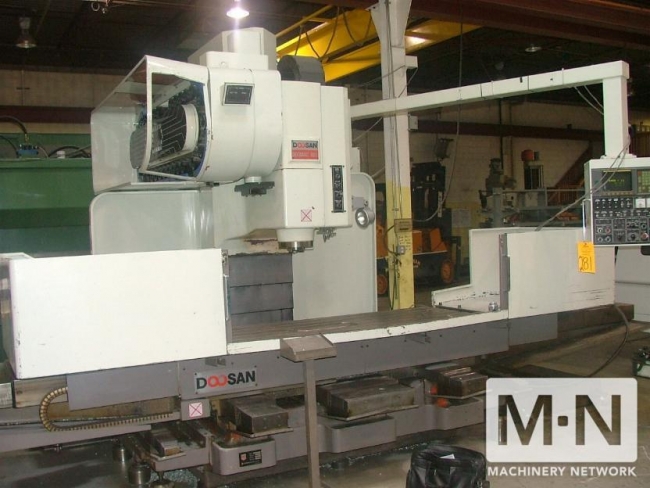

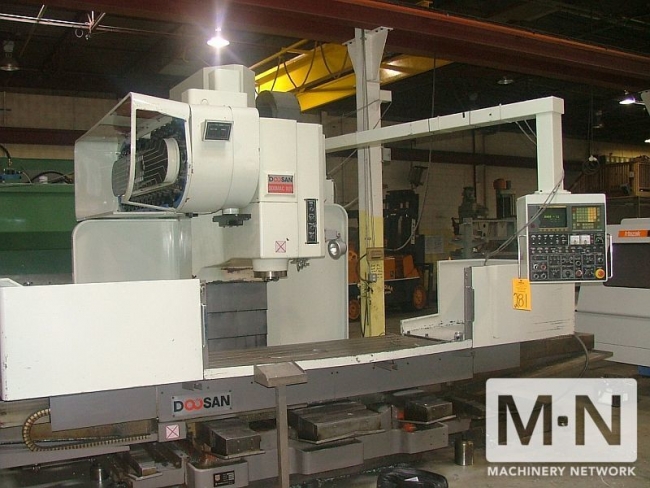

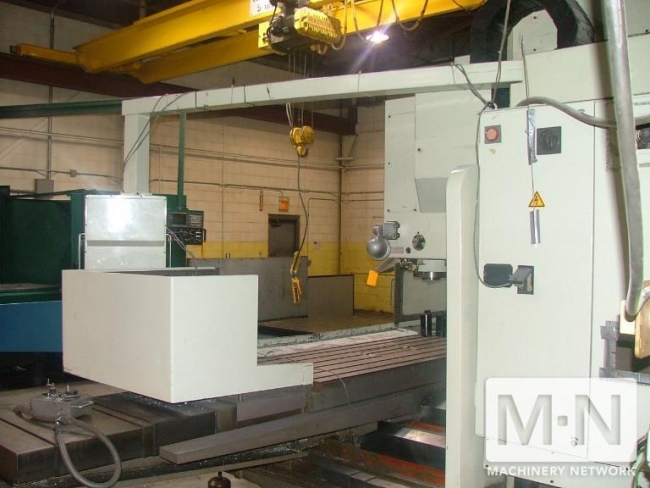

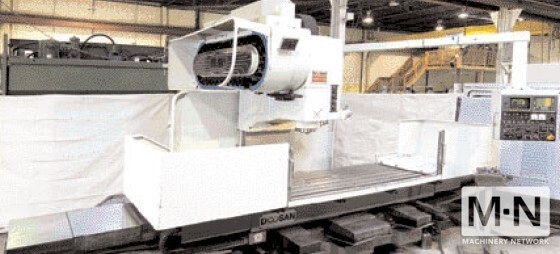

(1) USED DOOSAN DOOMAC 80V CNC VERTICAL MACHINING
CENTER, S/N:MVC055, NEW 1997
SPECIFICATIONS:
Table Size 94.49" X 34.25"
Table Travel X - Axis 78.74"
Y - Axis 33.07"
Z - Axis 31.50"
Spindle Nose To Table Top 7.8"-9.3"
Spindle Nose #50
Spindle Speed 20-3600 RPM
Spindle Motor 25 HP AC
(820 FT-LBS)
Gear Ranges 3
Cutting Feedrate .04"-142 IPM
Rapid Traverse X,Y,Z 494 IPM
Maximum Table Weight 5500 LBS.

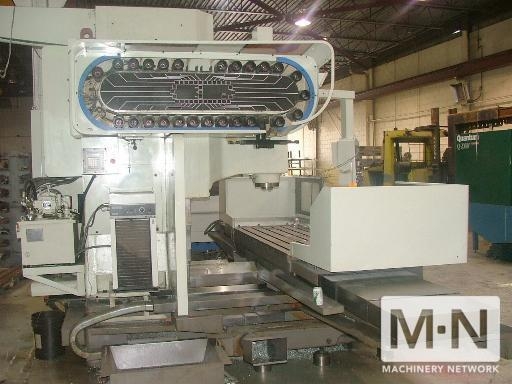

Tool Magazine 30 ATC
Max. Tool Diameter 5.12"
Max Tool Dia. 9.45"
Max Tool Length 15.75"
Max Tool Weight 44 LBS.
Machine Weight 44,000 LBS.
EQUIPPED WITH:
FANUC O-MC CNC CONTROL
RIGID TAPPING ,HAND-HELD M.P.G,G-54THRU'G-59 WORK OFFSETS
64 TOOL OFFSETS,
SPINDLE CHILLER ,CHIP AUGER CONVEYOR
PARTIAL ENCLOSURE GUARDING
6950 CUTTING HOURS !!!
ALL AVAILABLE MANUALS
CENTER, S/N:MVC055, NEW 1997
SPECIFICATIONS:
Table Size 94.49" X 34.25"
Table Travel X - Axis 78.74"
Y - Axis 33.07"
Z - Axis 31.50"
Spindle Nose To Table Top 7.8"-9.3"
Spindle Nose #50
Spindle Speed 20-3600 RPM
Spindle Motor 25 HP AC
(820 FT-LBS)
Gear Ranges 3
Cutting Feedrate .04"-142 IPM
Rapid Traverse X,Y,Z 494 IPM
Maximum Table Weight 5500 LBS.
Tool Magazine 30 ATC
Max. Tool Diameter 5.12"
Max Tool Dia. 9.45"
Max Tool Length 15.75"
Max Tool Weight 44 LBS.
Machine Weight 44,000 LBS.
EQUIPPED WITH:
FANUC O-MC CNC CONTROL
RIGID TAPPING ,HAND-HELD M.P.G,G-54THRU'G-59 WORK OFFSETS
64 TOOL OFFSETS,
SPINDLE CHILLER ,CHIP AUGER CONVEYOR
PARTIAL ENCLOSURE GUARDING
6950 CUTTING HOURS !!!
ALL AVAILABLE MANUALS
