GROMAX P36-75A
Type:
ELECTRIC DISCHARGE MACHINES, CONVENTIONAL, (Ram Type, Sinker)
Manufacturer:
GROMAX
Model:
P36-75A
Condition:
Not Specified
Year:
1996
Stock #:
22288
Status:
Sold
Description:
16" x 12.5" x 7" TRVLS, DRO
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

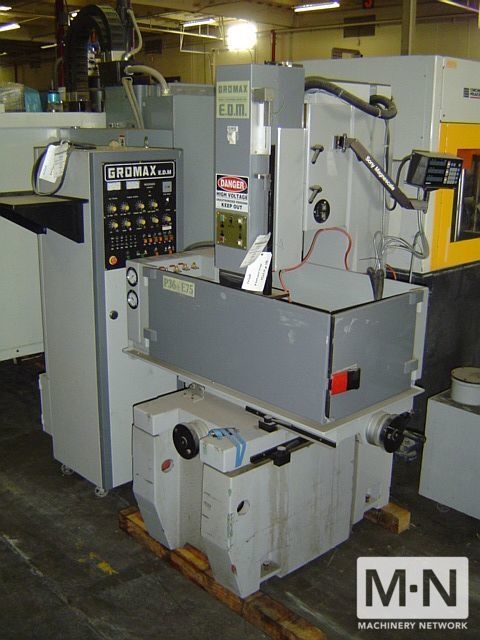

(1) USED GROMAX MODEL P36-75A ELECTRICAL DISCHARGE MACHINE
S/N: 6030202, NEW 1996
SPECIFICATIONS:
TABLE DIMENSIONS: 25.6" X 13.8"
X-AXIS TRAVEL: 16"
Y-AXIS TRAVEL: 12.5"
MAX WORK PIECE: 38" X 21" X 15"
MAX WORK PIECE WEIGHT: 2200 LBS
WORK TANK: 39" X 22" X 16"
WORK HEAD:
BACKSLIDE TRAVEL: 11.5"
QUILL TRAVEL: 7.25"
MAX DIST TABLE TO ELECTRODE PLATE: 23.7"
MAX ELECTRODE WEIGHT: 330 LBS
NET WEIGHT OF MACHINE: 3500 LBS
DIELECTRIC RESERVOIR: 63 GALS
GENERATOR - MAX AMPS: 75
- CURRENT POWER INPUT: 9 KVA
EQUIPPED WITH:

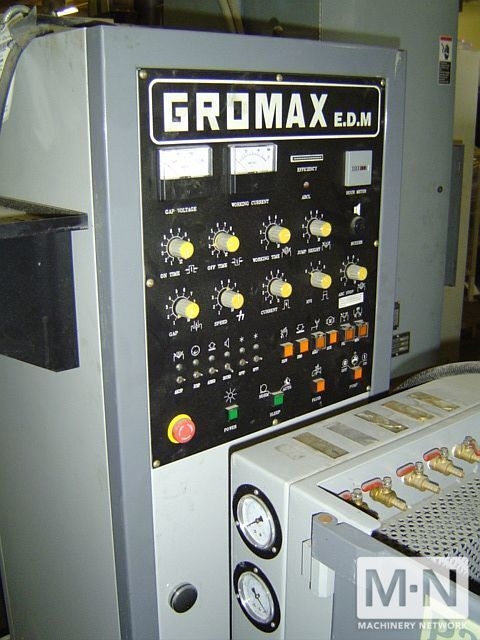

SONY DIGITAL READ OUT
FIRE EXTINGUISHER
CHILLER
S/N: 6030202, NEW 1996
SPECIFICATIONS:
TABLE DIMENSIONS: 25.6" X 13.8"
X-AXIS TRAVEL: 16"
Y-AXIS TRAVEL: 12.5"
MAX WORK PIECE: 38" X 21" X 15"
MAX WORK PIECE WEIGHT: 2200 LBS
WORK TANK: 39" X 22" X 16"
WORK HEAD:
BACKSLIDE TRAVEL: 11.5"
QUILL TRAVEL: 7.25"
MAX DIST TABLE TO ELECTRODE PLATE: 23.7"
MAX ELECTRODE WEIGHT: 330 LBS
NET WEIGHT OF MACHINE: 3500 LBS
DIELECTRIC RESERVOIR: 63 GALS
GENERATOR - MAX AMPS: 75
- CURRENT POWER INPUT: 9 KVA
EQUIPPED WITH:
SONY DIGITAL READ OUT
FIRE EXTINGUISHER
CHILLER
