Machinery Network > Used Inventory > BROTHER TC-325

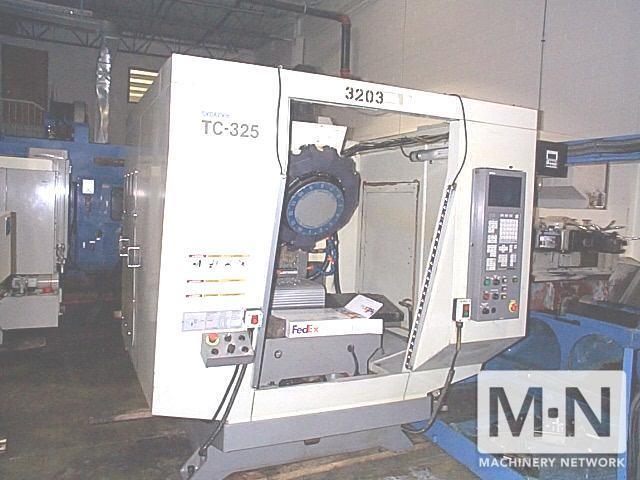

BROTHER TC-325

Type:
Vertical Machining Centers
Manufacturer:
BROTHER
Model:
TC-325
Condition:
Not Specified
Year:
1998
Stock #:
21159
Status:
Sold
Description:
620 G-CODE CNC, 10000 RPM, 27.6" X 12.6" X 10.2", #30 TAPER
Location:
Illinois, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

(1) USED BROTHER TC-325 CNC DRILL AND TAPPING
CENTER NEW 1998

SPECIFICATIONS:
TABLE SIZE: 33.5" X 11.8"
MAX TABLE LOAD (ONE SIDE): 661.4 LBS
TRAVELS -X AXIS: 27.6"
-Y AXIS: 12.6"
-Z AXIS: 10.2"
SPINDLE SPEED: 10,000 RPM
CUTTING FEED RATE: 0.2-394 IPM
SPINDLE TAPER: #30
SPINDLE NOSE TO TABLE TOP: 7.5" - 17.7"
RAPID TRAVERSE RATE: 1181 IPM
TURRET CONFIGURATION: 14
TOOL CHANGE TIME (TOOL-TOOL): 1.2 SEC
(CHIP-CHIP): 2.3 SEC
MAIN MOTOR: 6 KW
MACHINE HEIGHT: 94.7"
REQUIRED FLOOR SPACE: 57.5" X 120.8"
MACHINE WEIGHT: 6,174 LBS

EQUIPPED WITH:
CNC 620 G-CODE TYPE CONTROL
RIGID TAPPING
COOLANT SYSTEM
CHIP CONVEYOR
SAFETY LIGHT CURTAIN
RS232C PORT
ALL MANUALS

PRICE:
PRICE
