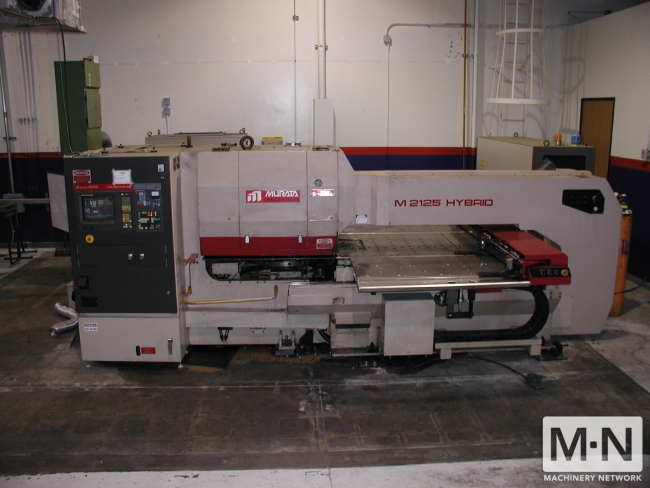

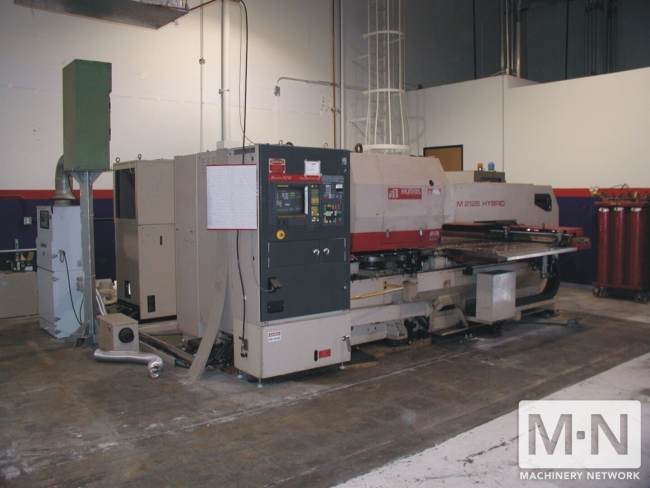

WIEDEMANN M-2125 HYBRID

Type:

PUNCHES, TURRET, N/C & CNC

Manufacturer:

WIEDEMANN

Model:

M-2125 HYBRID

Condition:

Not Specified

Year:

1992

Stock #:

18249

Status:

Sold

Description:

22 TON, 30 STNS., 4 A.I., 1500 WATT LASER

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

WIEDEMANN MODEL M-2125 " HYBRID " COMBINATION
CNC TURRET PUNCH & LASER

NEW 1992

CAPACITY 22 TONS
LASER 1500 WATT
MAX. MATERIAL THICKNESS 1/4"
MAX. WORKPIECE SIZE LASER 49.25" X 39.37"
MAX. WORKPIECE SIZE PUNCH 49.25" X 49.25"
MAX. TABLE TRAVERSE 50.8" X 52.6"
THROAT DEPTH 43"
MAX. SHEET WEIGHT 110 LBS.
MAX. HOLE DIAMETER 3.5"
TABLE TRAVERSE RATE 1968 IPM
MAX. LASER CUTTING SPEED 394 IPM
TURRET INDEX SPEED 30 RPM
PUNCHING SPEED 450 SPM
STROKE 1.26"
TURRET CONFIGURATION 30 STNS. 114 STYLE

EQUIPPED WITH:

FANUC MODEL 00P-C TALKATIVE P-III CNC CONTROL
WITH CRT

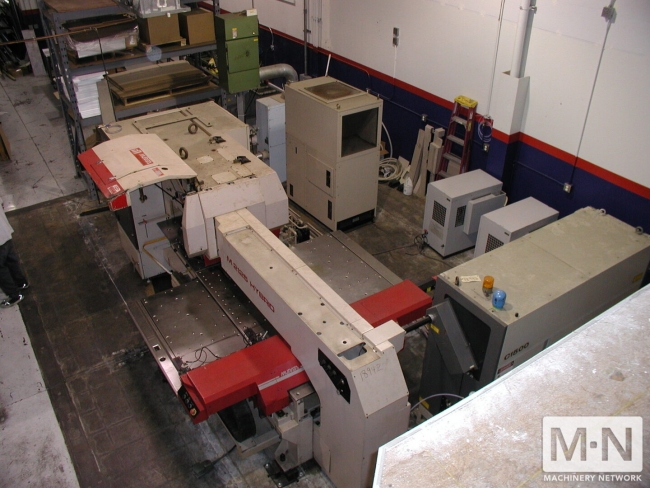

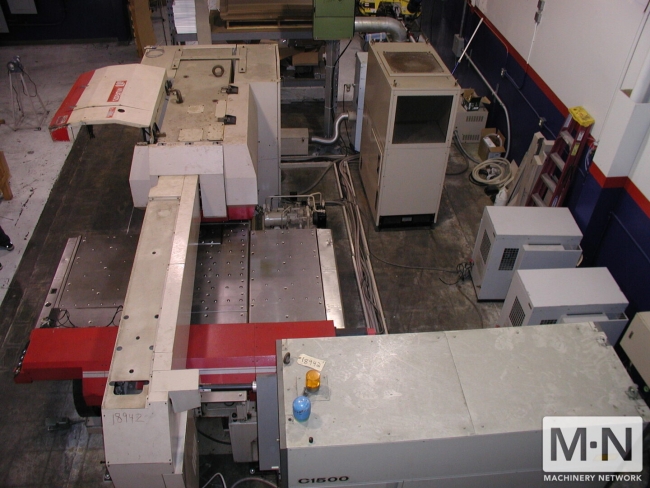

FANUC MODEL C1500 LASER
(4) AUTO INDEX STATIONS CURRENTLY ARRANGED AS
2 INDEX TOOLS & 2 VARI-TOOLS

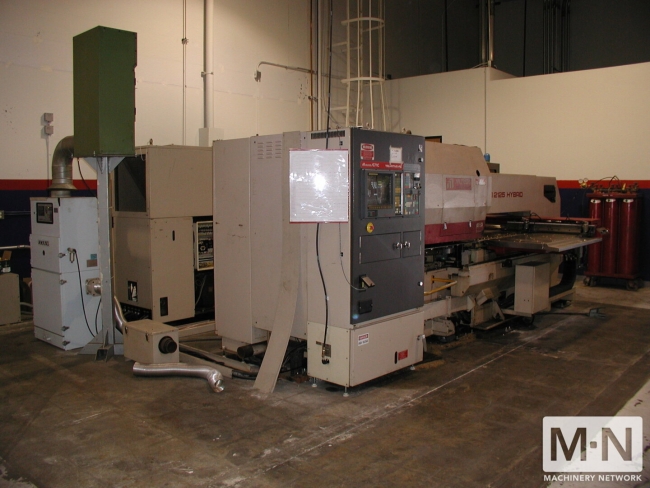

CHILLER UNIT, DUST COLLECTOR SYSTEM, (2) AIR COM-
PRESSORS W/DRYERS, DOUBLE TRACK TURRET & DOUBLE
PUNCH HEADS, HYDRAULIC CLUTCH & BRAKE, PNEUMATIC
WORK PIECE CLAMPING, PROGRAMMABLE WORK CHUTE,
AC MAIN DRIVE MOTOR, AC SERVP DRIVE MOTORS,
HYDRAULIC POWER UNIT.

PRICE:
PRICE

FOR FURTHER INFORMATION PLEASE CALL HARVEY GELLER
AT 714 968-9985
