Machinery Network > Used Inventory > RAMBAUDI 1000

RAMBAUDI 1000

Type:
Vertical Machining Centers
Manufacturer:
RAMBAUDI
Model:
1000
Condition:
Not Specified
Stock #:
17555
Status:
Sold
Description:
FANUC 16M ,4-SPINDLE, PROFILER
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

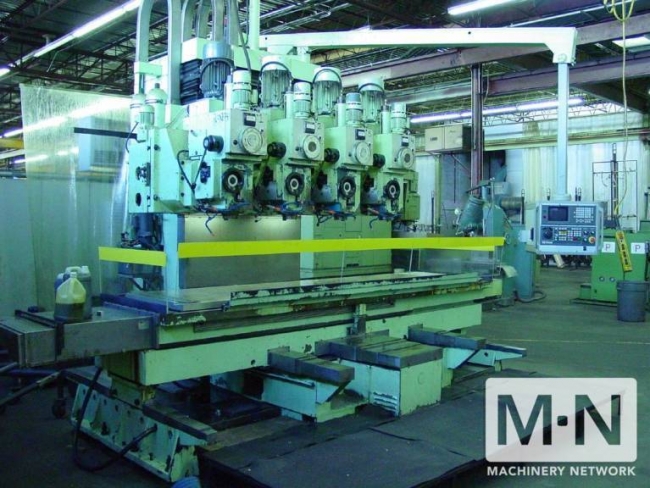

(1) USED RAMBAUDI RAMMATIC 1000 NC4 (1004)
4-SPINDLE 3-AXIS CNC VERTICAL PROFILER.

SPECIFICATIONS:
TABLE WORK SURFACE: 138" X 34"
TRAVELS - X-AXIS: 78"
- Y-AXIS: 39.5"
- Z-AXIS: 34"
QUILL DIAMETER/TRAVEL: 6.6"/6"
SPINDLE TAPERS: #50 NS
DIST. BETWEEN SPDL CTR: 17.7"
DIST. SPDL TO COLUMN: 42.32"
MAX. PART SIZE USING 4-SPDL: 27.5" X 42"
SPINDLE SPEEDS: 30 - 3,000 RPM
SPINDLE MOTOR: 15 HP
MACHINE WEIGHT: 57500 LBS
MACHINE DIMS: 157"L x 154"W x 178"H


EQUIPPED WITH:
FANUC 16M CONTROLS

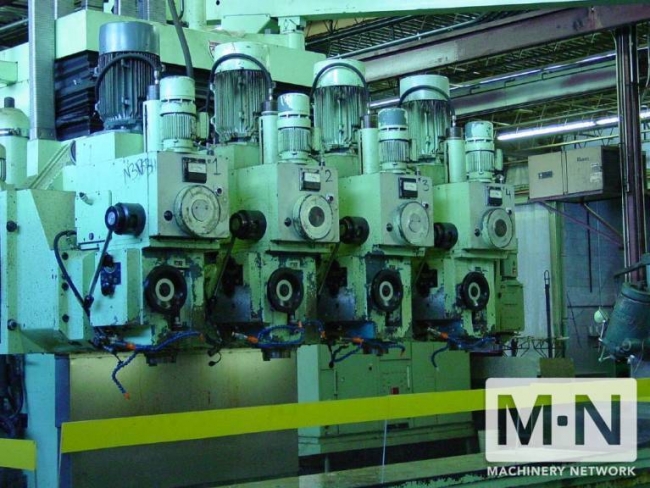

4-20 HP RAMBAUDI MILLING HEADS ,POWER DRAW-BAR.
WAY COVERS,OUTRIGGER TABLE SUPPORTS.

MACHINE WAS COMPLETELY RETROFITTED BY
HIGH QUALITY MACHINE REBUIDER WITH NEW
CONTROLS,DRIVES,WIRING AND MOTORS IN 1997.
LOCATED IN AEROSPACE JOB SHOP !!!!
