GORTON 0-16
Type:
MILLERS, VERTICAL
Manufacturer:
GORTON
Model:
0-16
Condition:
Not Specified
Year:
1960
Stock #:
7035
Status:
Sold
Description:
#0-16, 9" X 24" TBL
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

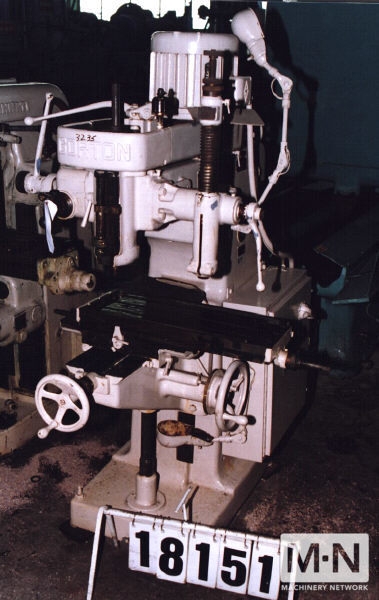

(1) USED #0-16 GORTON "SUPER-SPEED" VERTICAL MILL
MODEL 0-16 - NEW 1960 - S/N: 39054
SPECIFICATIONS:
TABLE WORKING SURFACE, W X L: 9" X 24"
TABLE LONGITUDINAL TRVL, X-AXIS: 16"
SADDLE CROSS TRAVEL, Y-AXIS: 10.5"
KNEE VERTICAL TRVL, Z-AXIS: 13"
RAM MOVEMENT: 12.25"
SPINDLE TRAVEL: 3"
SPINDLE NOSE TO TABLE, MIN: 0"
SPINDLE NOSE TO TABLE, MAX: 15"
SPINDLE TAPER: GORTON
(2) SPINDLE SPEEDS, RANGE: 700-12000RPM
SPINDLE MOTOR, HP/RPM: 2/1HP/3600/
1800/RPM
EQUIPPED WITH:
MANUAL DUPLICATING ATTACHMENT
MODEL 0-16 - NEW 1960 - S/N: 39054
SPECIFICATIONS:
TABLE WORKING SURFACE, W X L: 9" X 24"
TABLE LONGITUDINAL TRVL, X-AXIS: 16"
SADDLE CROSS TRAVEL, Y-AXIS: 10.5"
KNEE VERTICAL TRVL, Z-AXIS: 13"
RAM MOVEMENT: 12.25"
SPINDLE TRAVEL: 3"
SPINDLE NOSE TO TABLE, MIN: 0"
SPINDLE NOSE TO TABLE, MAX: 15"
SPINDLE TAPER: GORTON
(2) SPINDLE SPEEDS, RANGE: 700-12000RPM
SPINDLE MOTOR, HP/RPM: 2/1HP/3600/
1800/RPM
EQUIPPED WITH:
MANUAL DUPLICATING ATTACHMENT
